Building binary tree problem¶
Question
Given the pre-order traversal preorder
and in-order traversal inorder

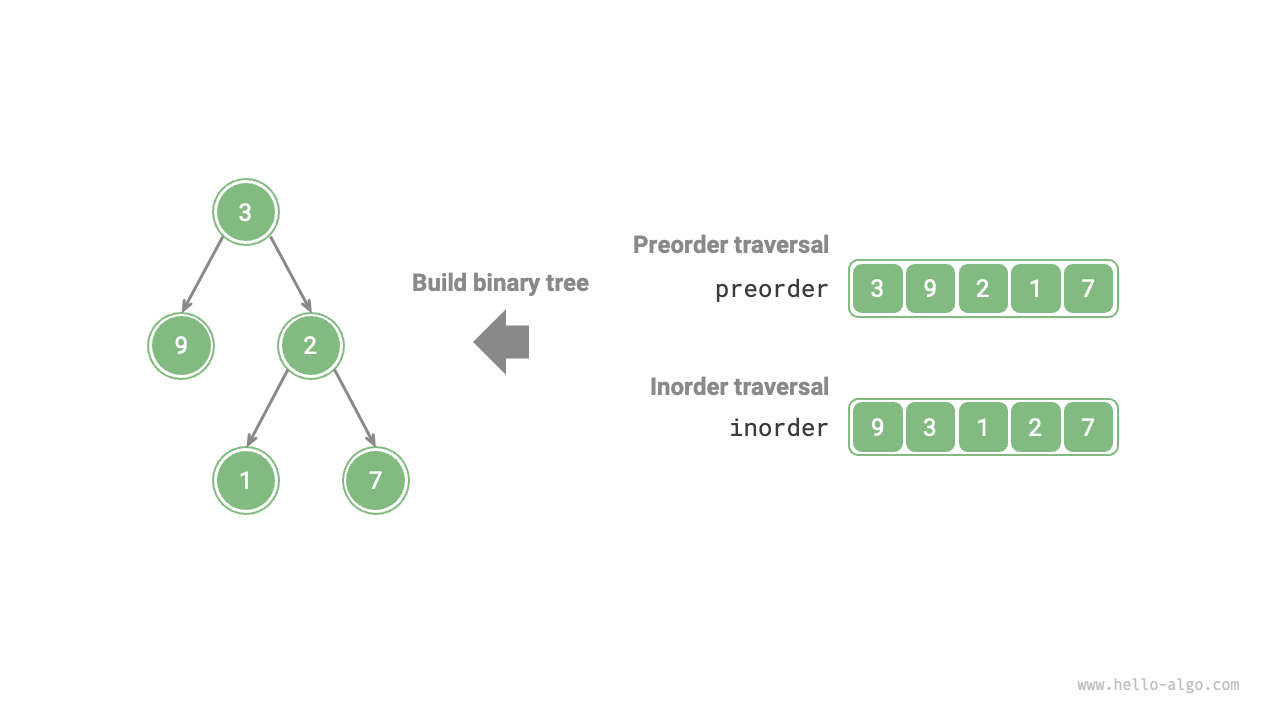

of a binary tree, construct the binary tree and return the root node of the binary tree. Assume that there are no duplicate values in the nodes of the binary tree (as shown in the figure below).
Determining if it is a divide and conquer problem¶
The original problem of constructing a binary tree from preorder
and inorder
is a typical divide and conquer problem.
- The problem can be decomposed: From the perspective of divide and conquer, we can divide the original problem into two subproblems: building the left subtree and building the right subtree, plus one operation: initializing the root node. For each subtree (subproblem), we can still use the above division method, dividing it into smaller subtrees (subproblems), until the smallest subproblem (empty subtree) is reached.
- The subproblems are independent: The left and right subtrees are independent of each other, with no overlap. When building the left subtree, we only need to focus on the parts of the in-order and pre-order traversals that correspond to the left subtree. The same applies to the right subtree.
- Solutions to subproblems can be combined: Once the solutions for the left and right subtrees (solutions to subproblems) are obtained, we can link them to the root node to obtain the solution to the original problem.
How to divide the subtrees¶
Based on the above analysis, this problem can be solved using divide and conquer, but how do we use the pre-order traversal preorder
and in-order traversal inorder
to divide the left and right subtrees?
By definition, preorder
and inorder
can be divided into three parts.
- Pre-order traversal:
[ Root | Left Subtree | Right Subtree ]
, for example, the tree in the figure corresponds to[ 3 | 9 | 2 1 7 ]
. - In-order traversal:
[ Left Subtree | Root | Right Subtree ]
, for example, the tree in the figure corresponds to[ 9 | 3 | 1 2 7 ]
.
Using the data in the figure above, we can obtain the division results as shown in the figure below.
- The first element 3 in the pre-order traversal is the value of the root node.
- Find the index of the root node 3 in
inorder
, and use this index to divideinorder
into[ 9 | 3 | 1 2 7 ]
. - Based on the division results of
inorder
, it is easy to determine the number of nodes in the left and right subtrees as 1 and 3, respectively, thus dividingpreorder
into[ 3 | 9 | 2 1 7 ]
.
Describing subtree intervals based on variables¶
Based on the above division method, we have now obtained the index intervals of the root, left subtree, and right subtree in preorder
and inorder
. To describe these index intervals, we need the help of several pointer variables.
- Let the index of the current tree's root node in
preorder
be denoted as . - Let the index of the current tree's root node in
inorder
be denoted as . - Let the index interval of the current tree in
inorder
be denoted as .

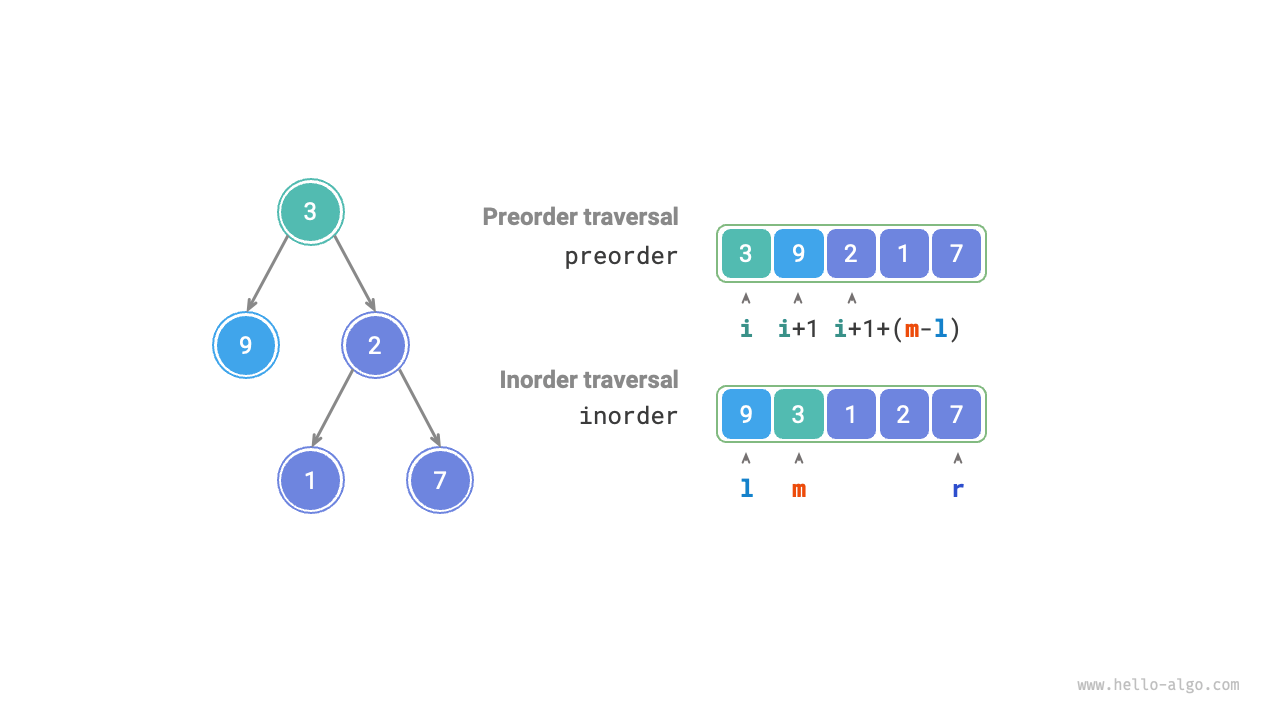

As shown in the table below, the above variables can represent the index of the root node in preorder
as well as the index intervals of the subtrees in inorder
.
Table
Root node index in preorder |
Subtree index interval in inorder |
|
---|---|---|
Current tree | ||
Left subtree | ||
Right subtree |
Please note, the meaning of
Code implementation¶
To improve the efficiency of querying hmap
to store the mapping of elements in inorder
to their indexes:

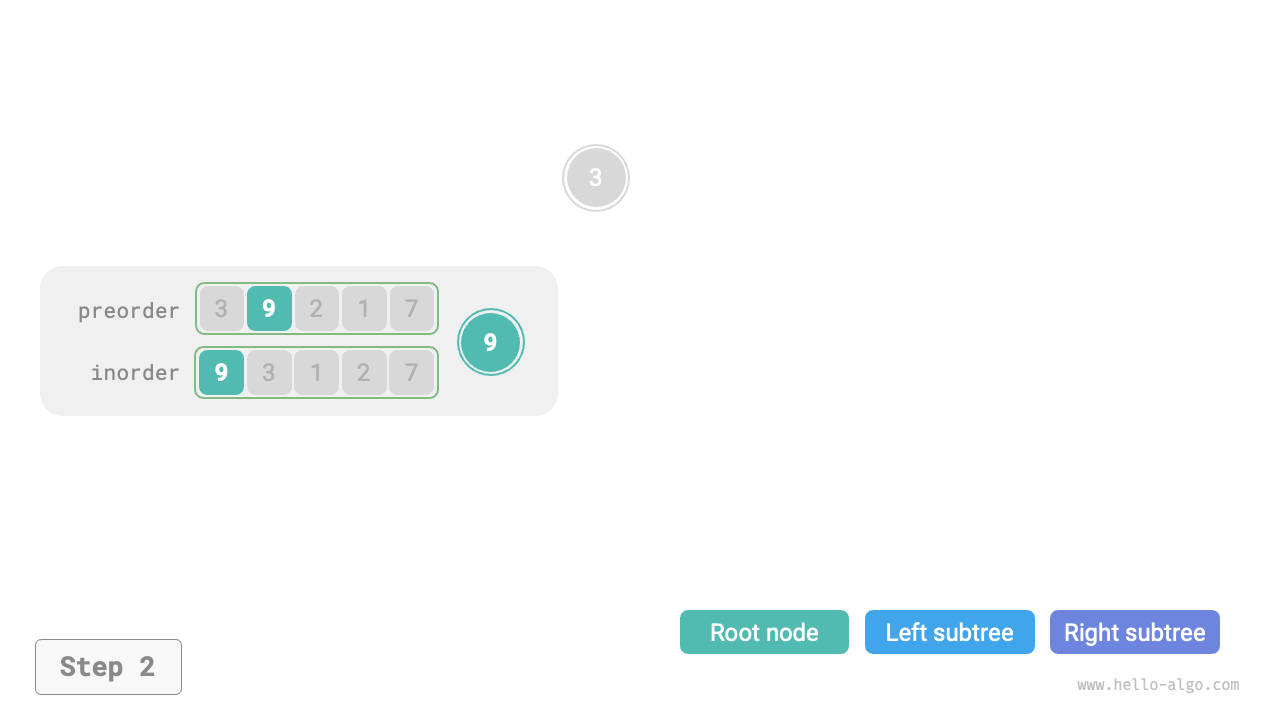

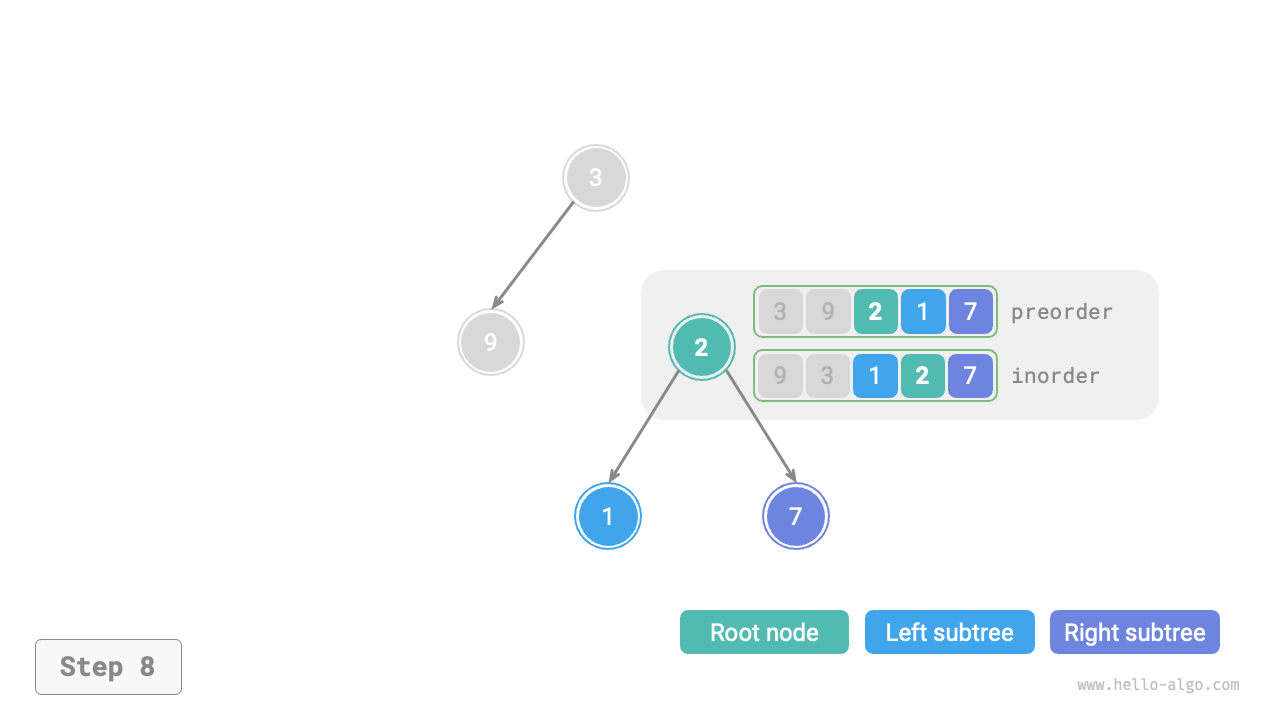

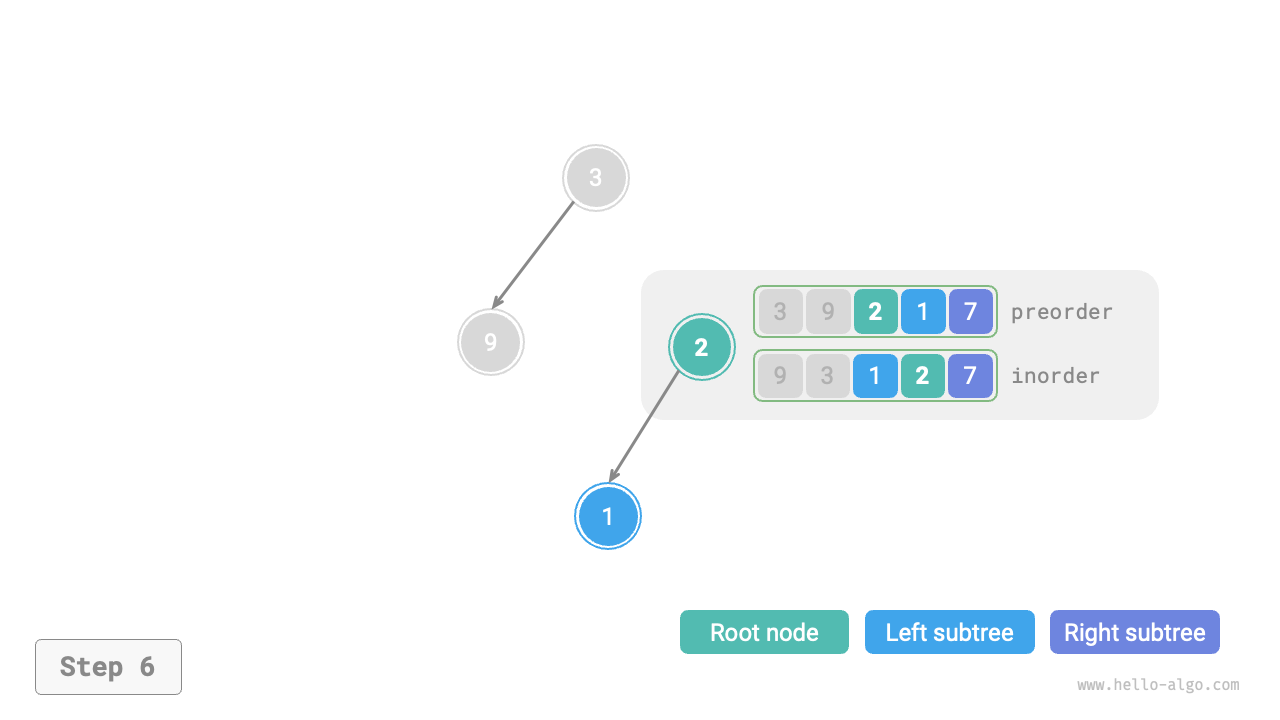

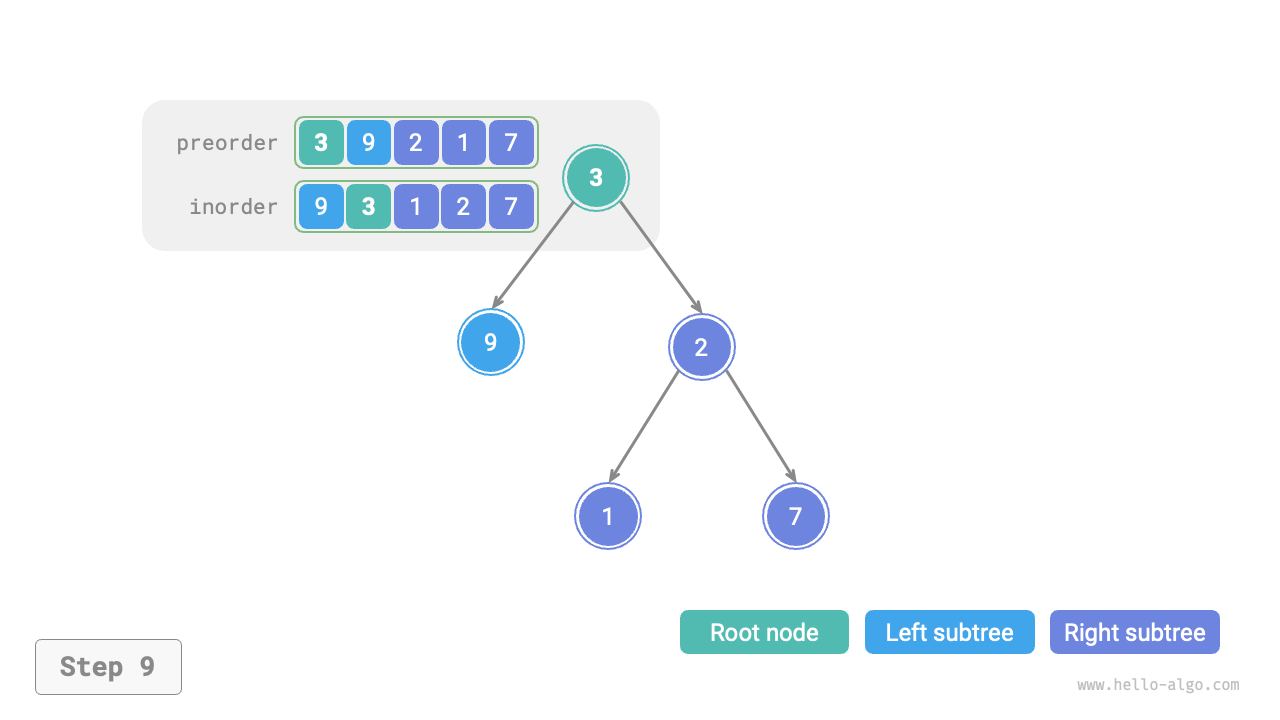

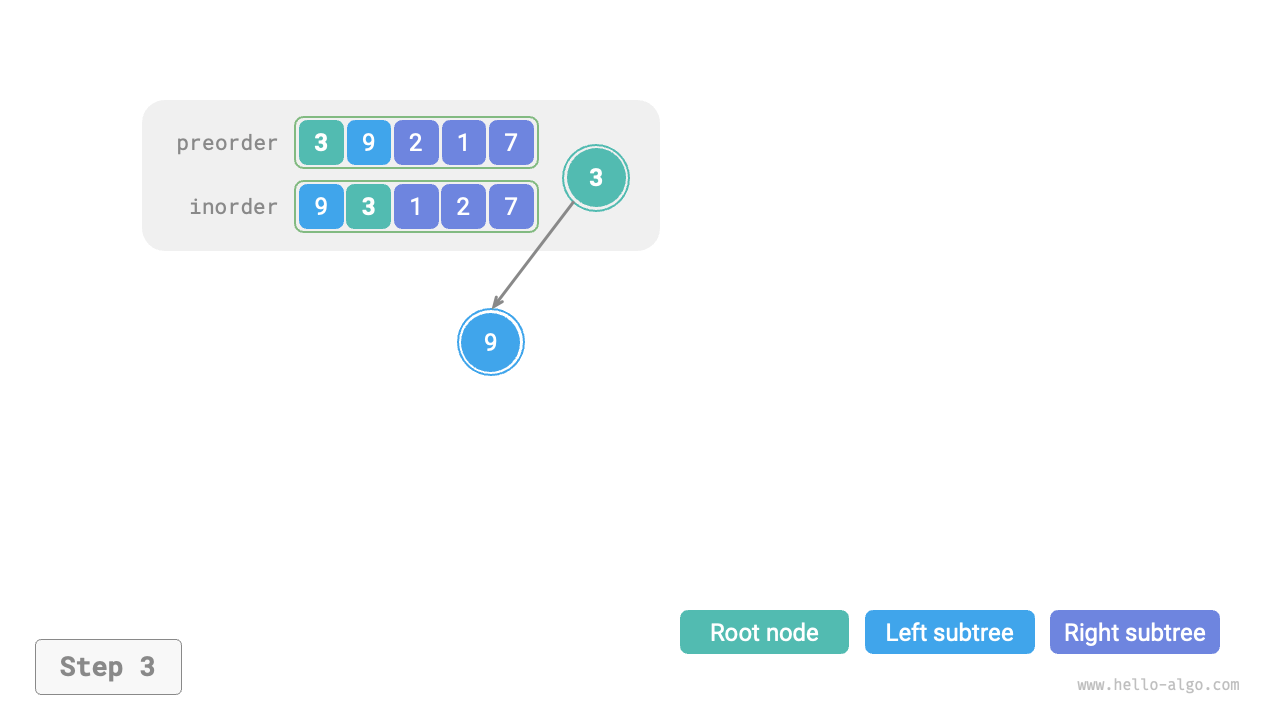

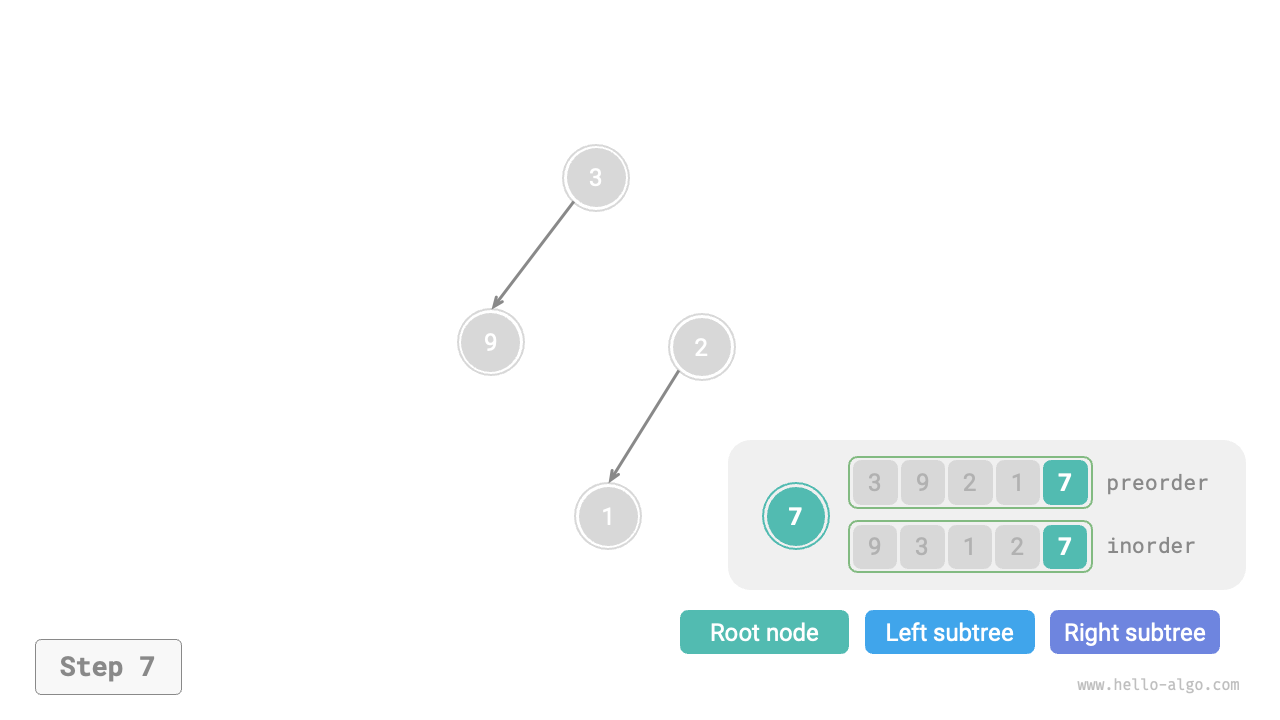

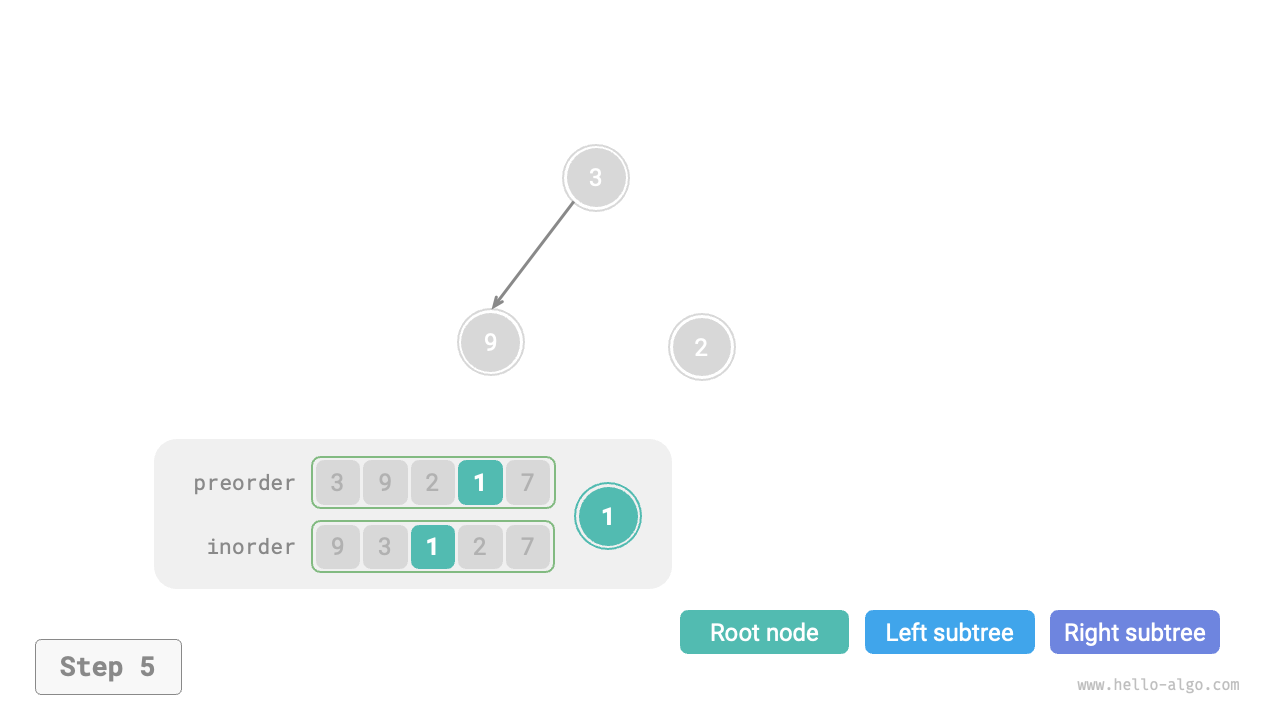

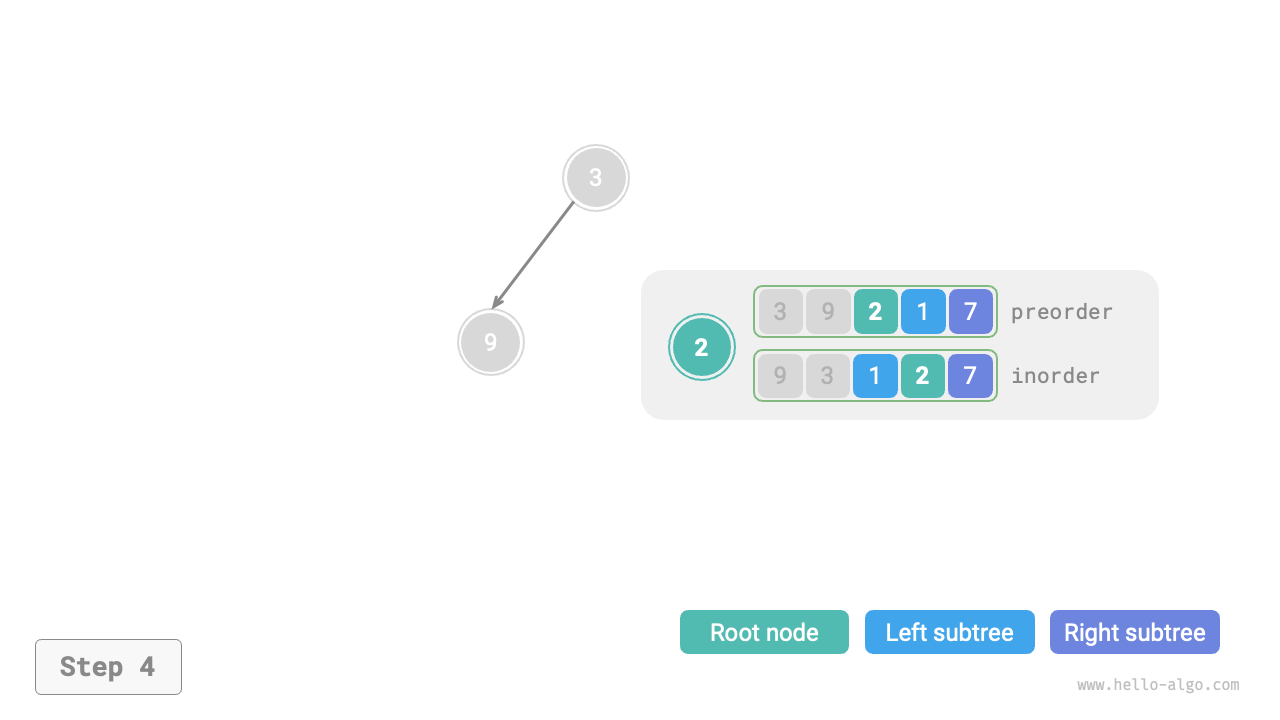

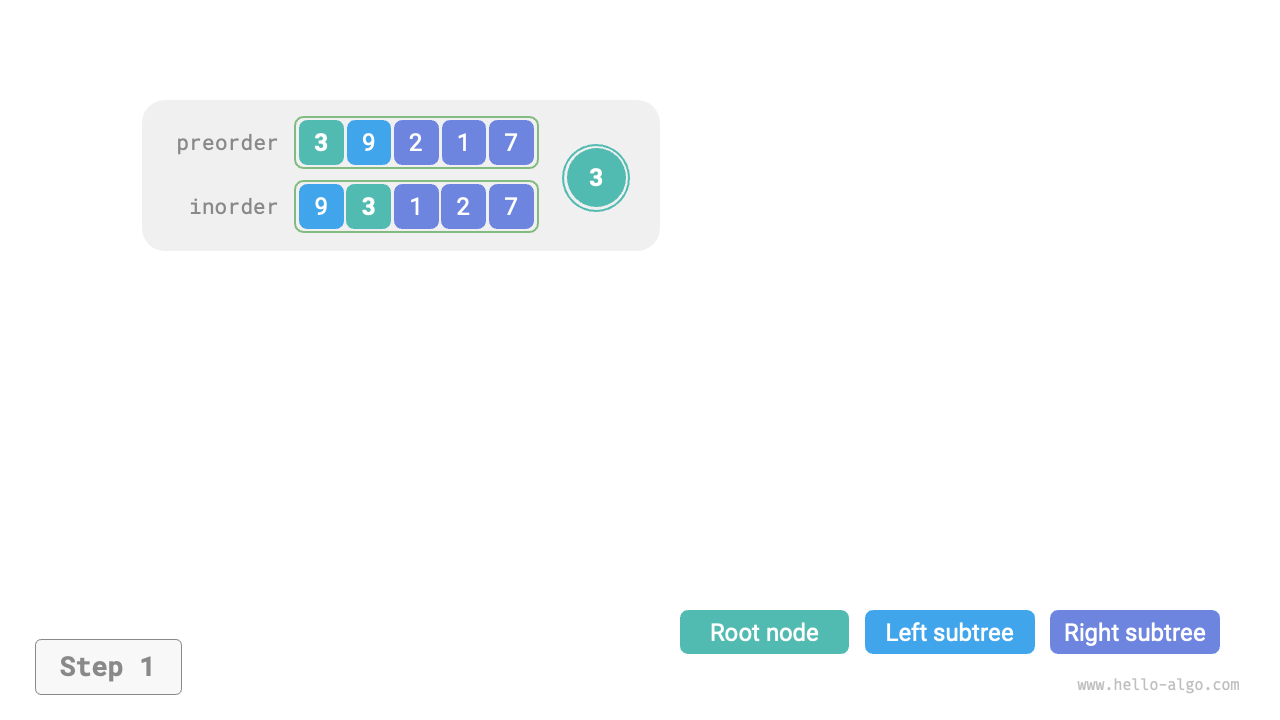

The figure below shows the recursive process of building the binary tree, where each node is established during the "descending" process, and each edge (reference) is established during the "ascending" process.

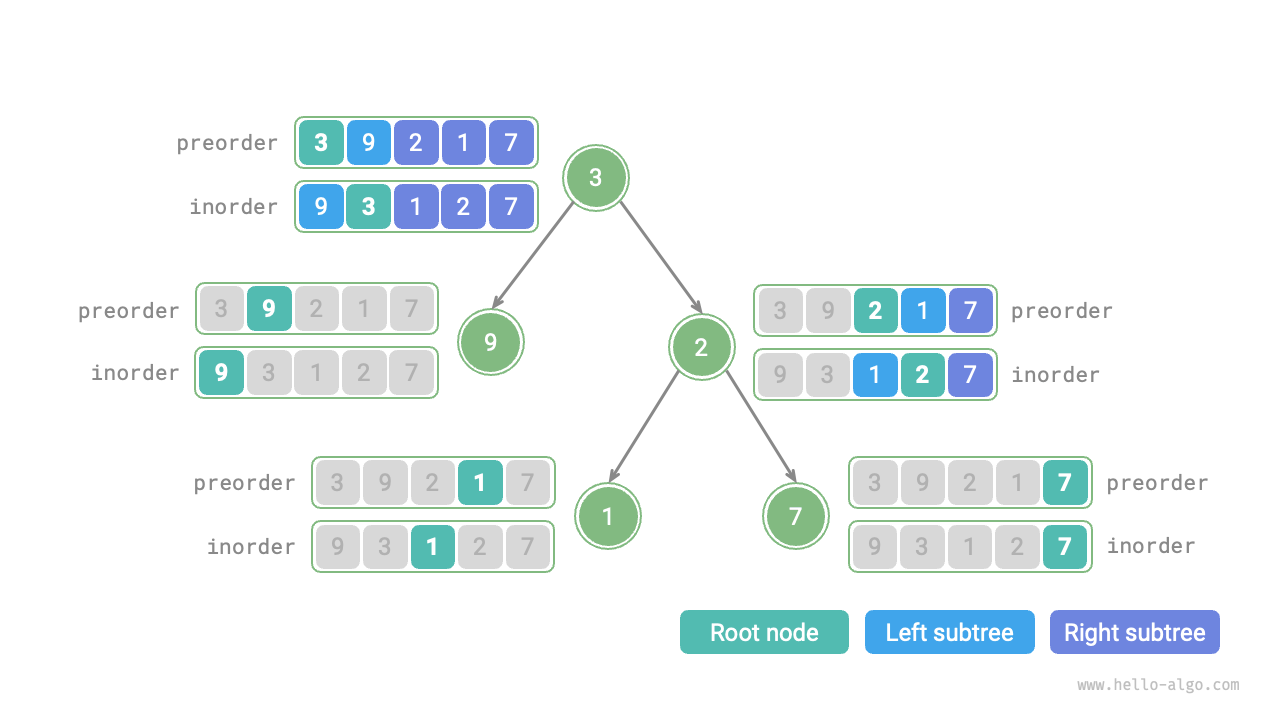

Each recursive function's division results of preorder
and inorder
are shown in the figure below.
Assuming the number of nodes in the tree is dfs()
) takes
The hash table stores the mapping of inorder
elements to their indexes, with a space complexity of
