Heap sort

Tip

Before reading this section, please make sure you have completed the "Heap" chapter.

Heap sort is an efficient sorting algorithm based on the heap data structure. We can implement heap sort using the "heap creation" and "element extraction" operations we have already learned.

  1. Input the array and establish a min-heap, where the smallest element is at the heap's top.
  2. Continuously perform the extraction operation, recording the extracted elements in sequence to obtain a sorted list from smallest to largest.

Although the above method is feasible, it requires an additional array to save the popped elements, which is somewhat space-consuming. In practice, we usually use a more elegant implementation.

Algorithm flow

Suppose the array length is \(n\), the heap sort process is as follows.

  1. Input the array and establish a max-heap. After completion, the largest element is at the heap's top.
  2. Swap the top element of the heap (the first element) with the heap's bottom element (the last element). After the swap, reduce the heap's length by \(1\) and increase the sorted elements count by \(1\).
  3. Starting from the heap top, perform the sift-down operation from top to bottom. After the sift-down, the heap's property is restored.
  4. Repeat steps 2. and 3. Loop for \(n - 1\) rounds to complete the sorting of the array.

Tip

In fact, the element extraction operation also includes steps 2. and 3., with the addition of a popping element step.

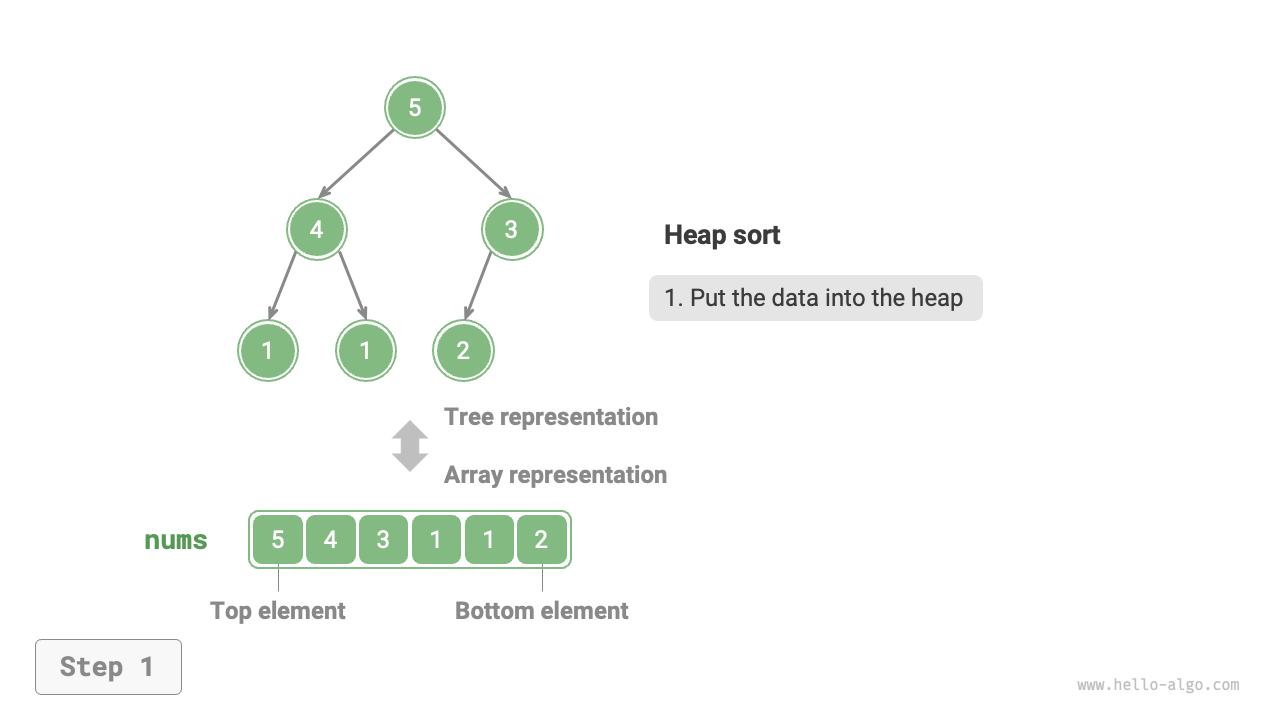

Heap sort process

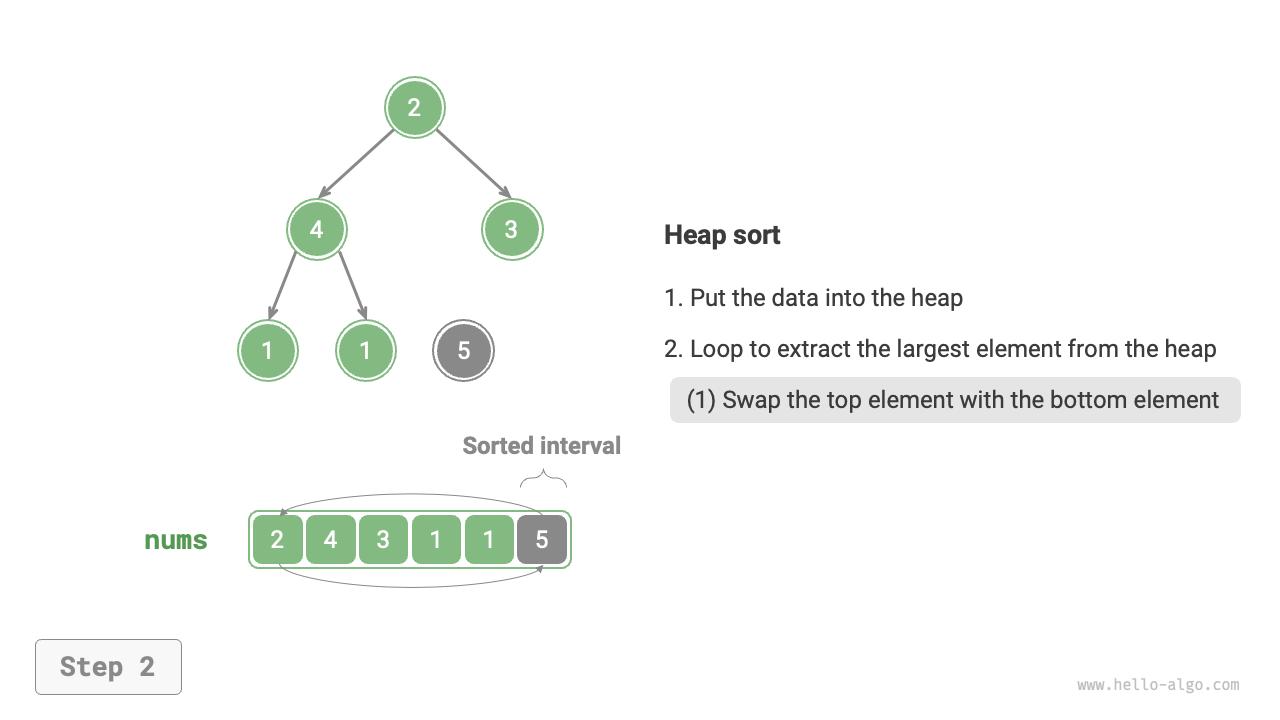

heap_sort_step2

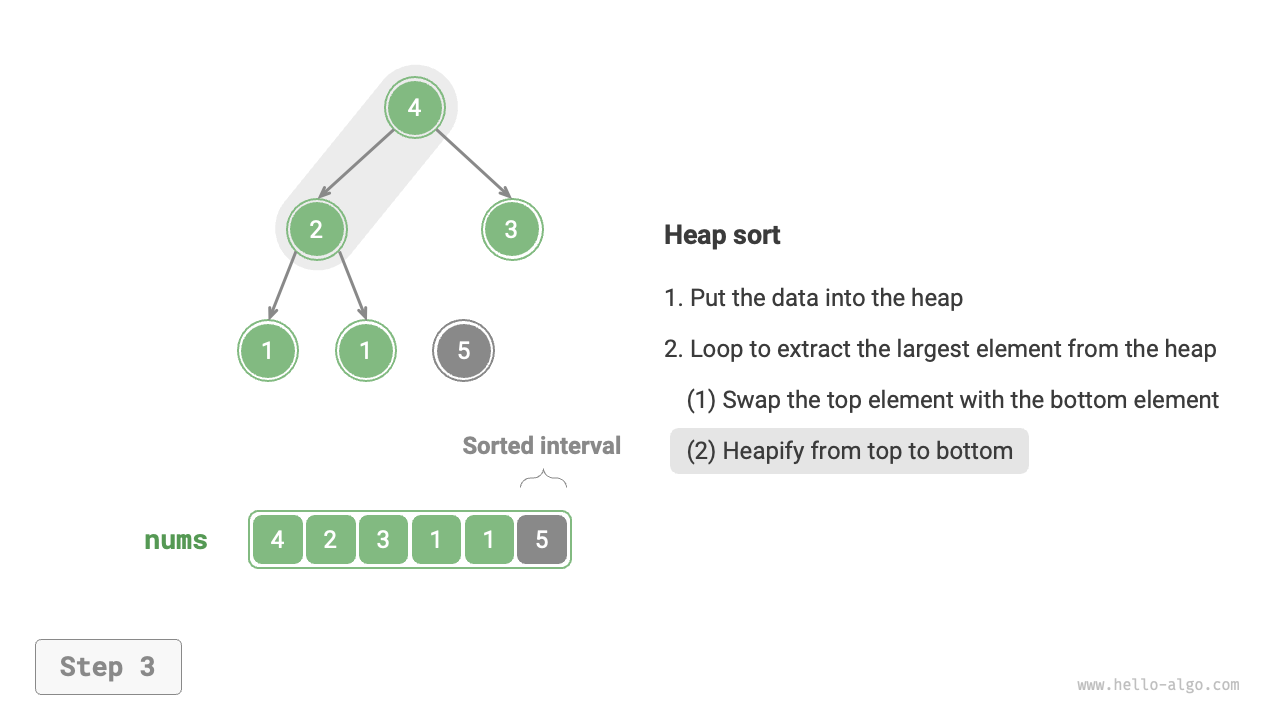

heap_sort_step3

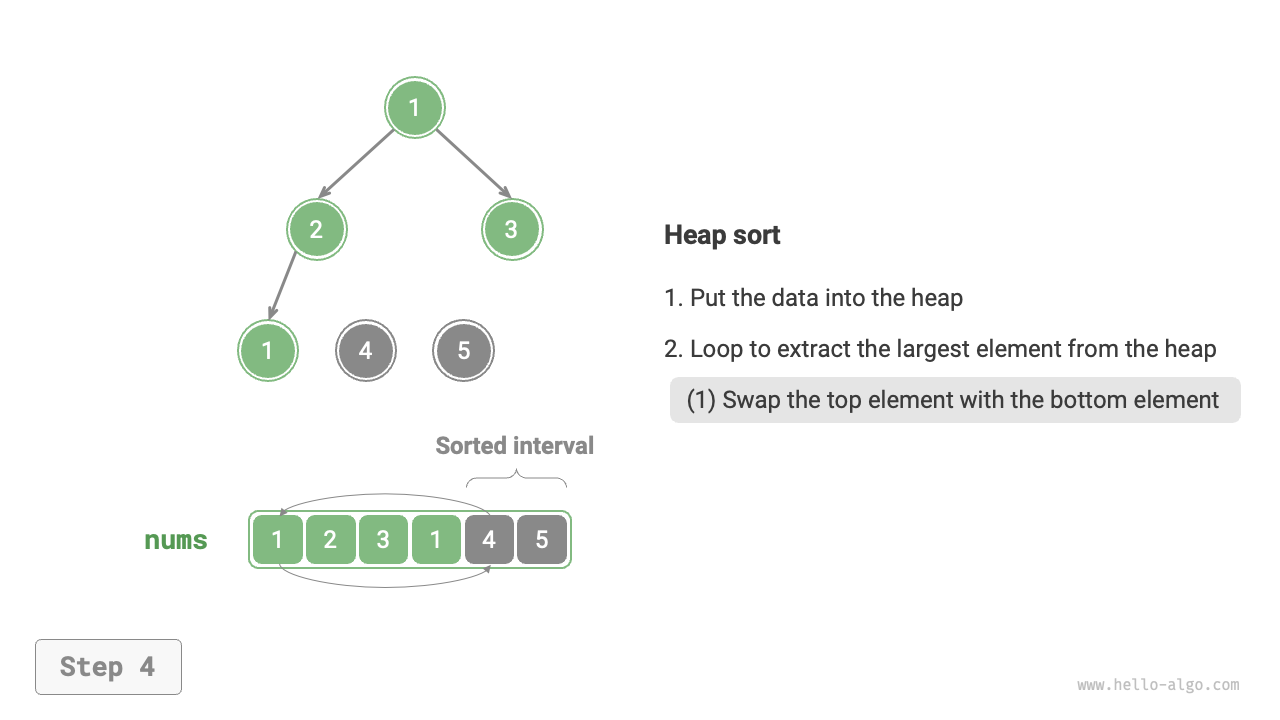

heap_sort_step4

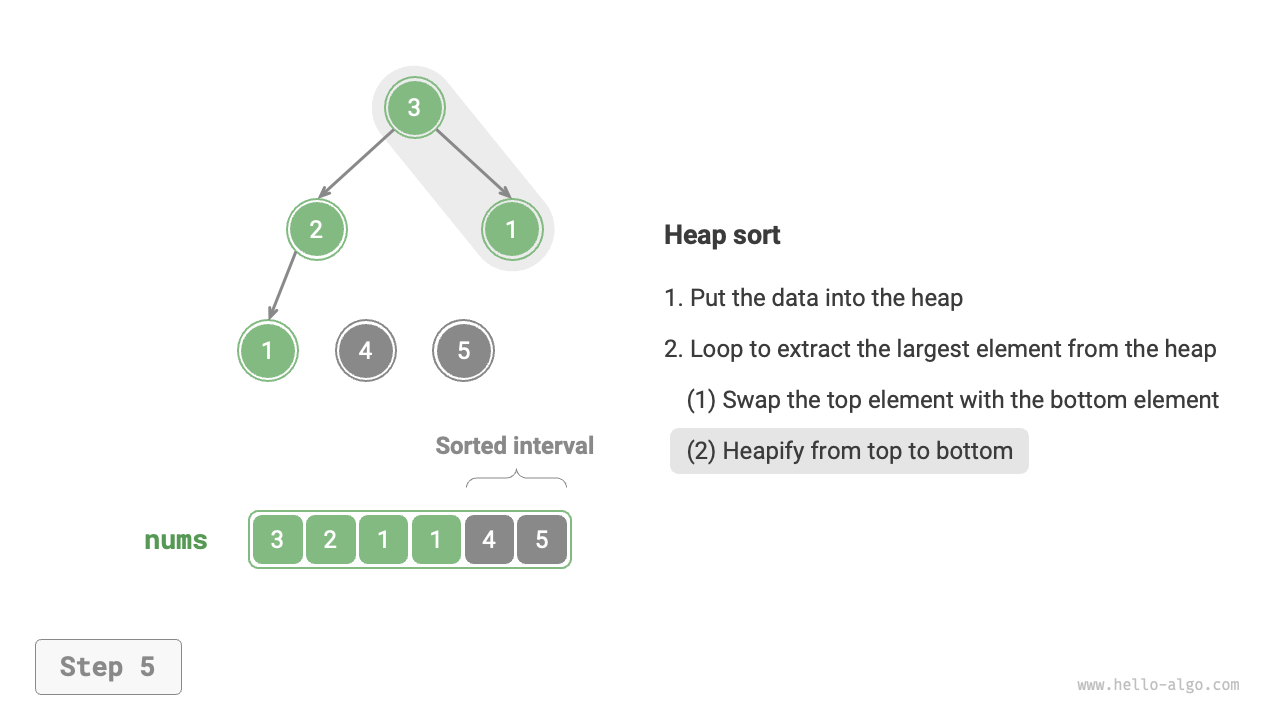

heap_sort_step5

heap_sort_step6

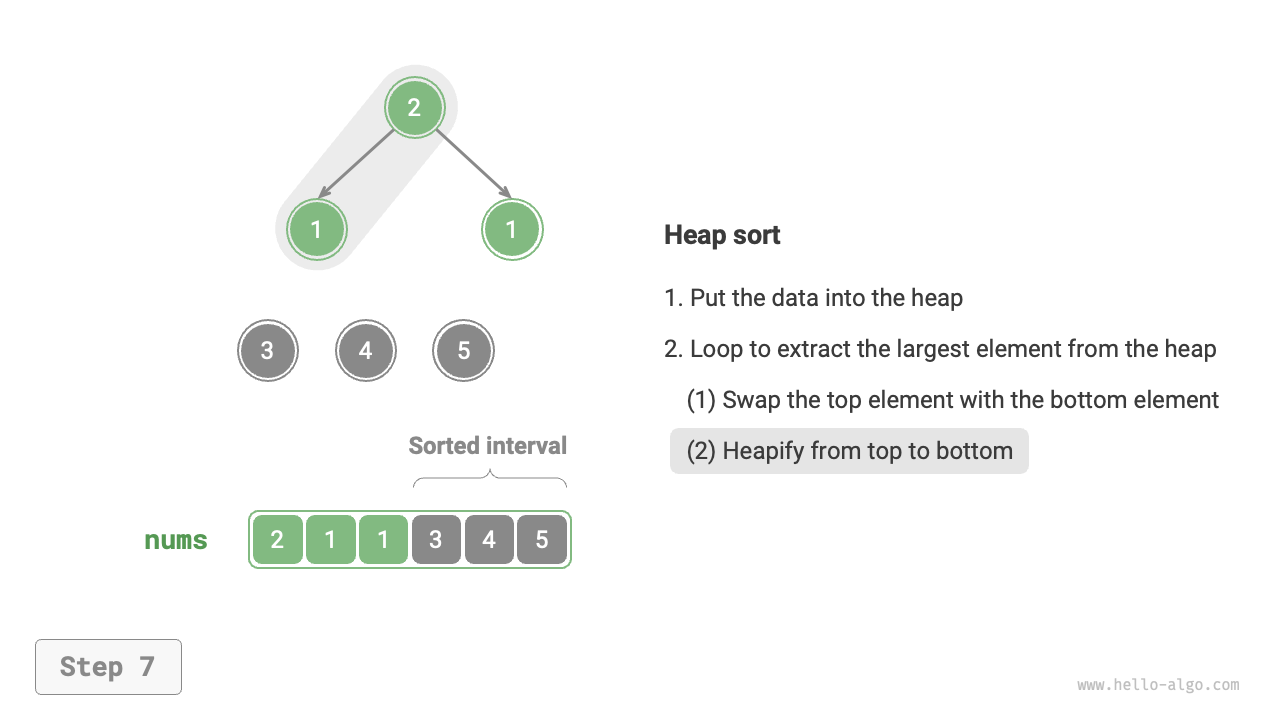

heap_sort_step7

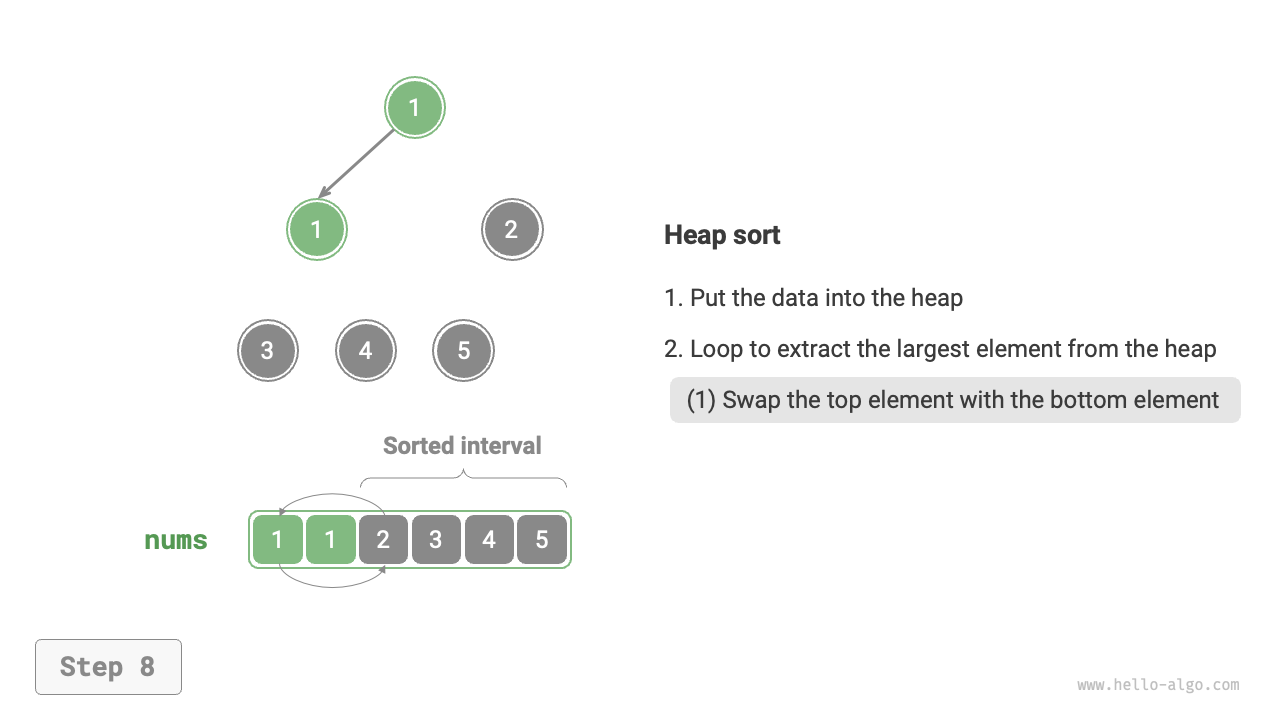

heap_sort_step8

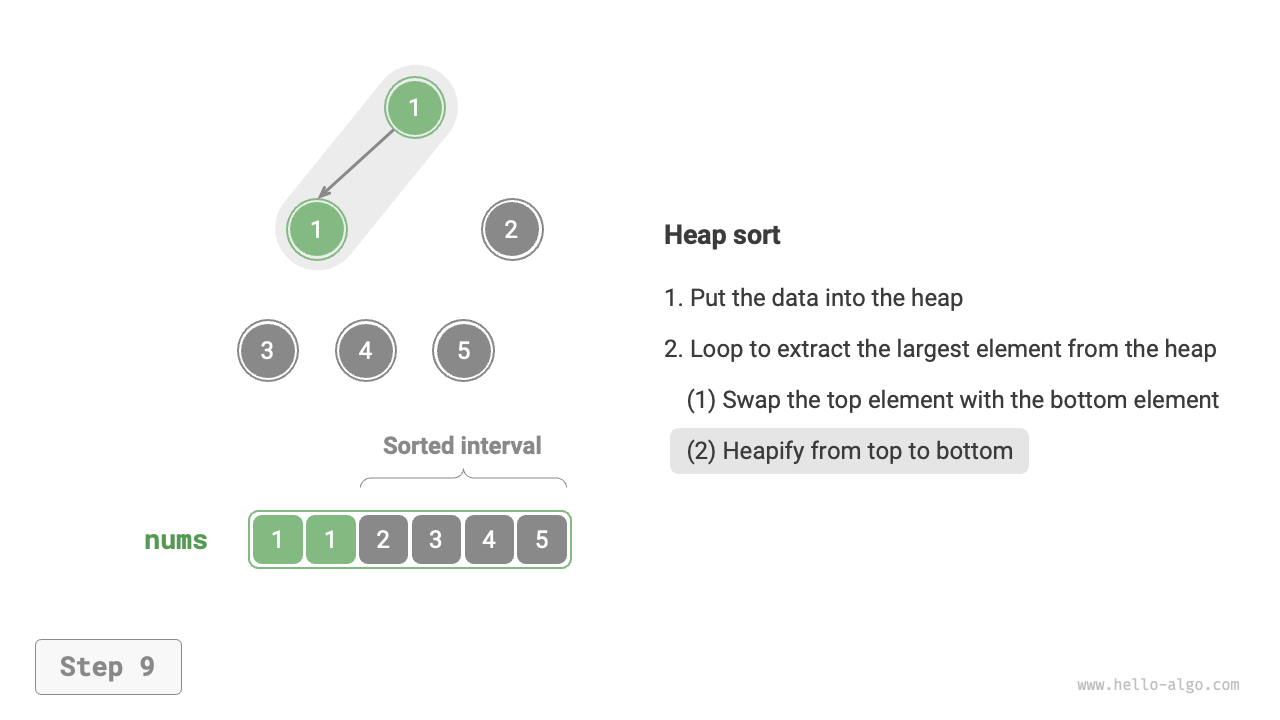

heap_sort_step9

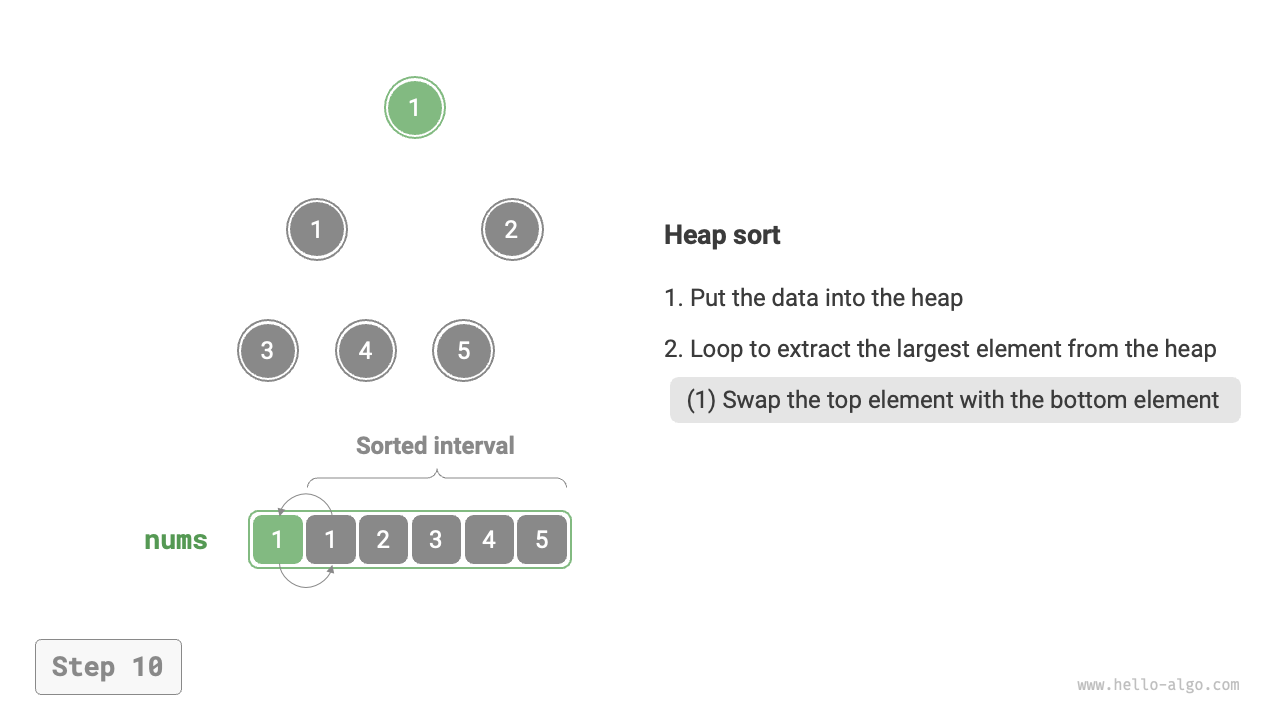

heap_sort_step10

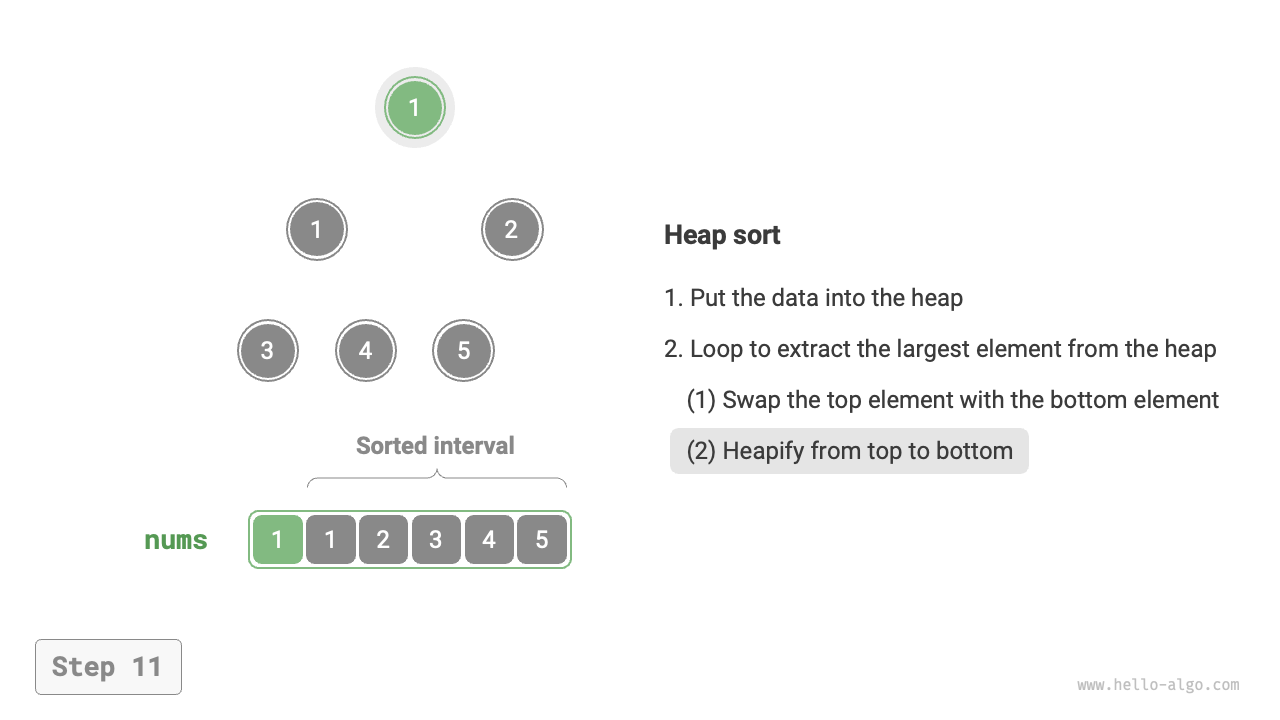

heap_sort_step11

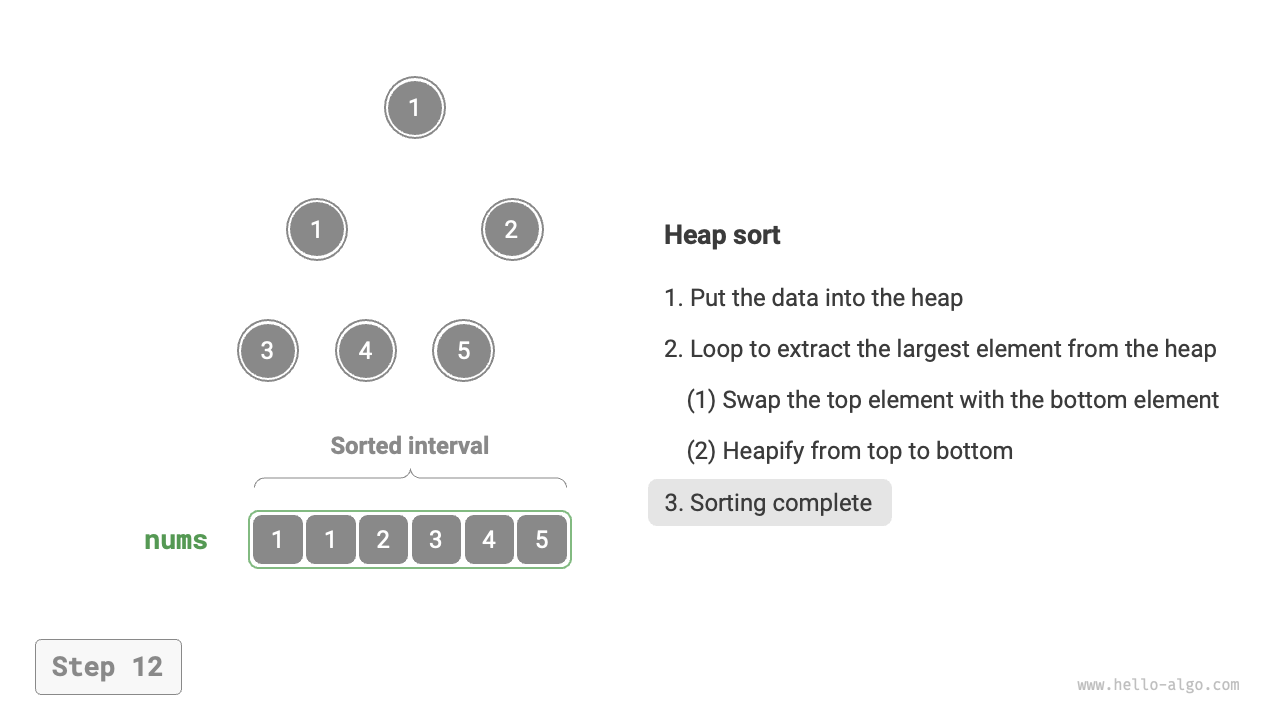

heap_sort_step12

In the code implementation, we used the sift-down function sift_down() from the "Heap" chapter. It is important to note that since the heap's length decreases as the maximum element is extracted, we need to add a length parameter \(n\) to the sift_down() function to specify the current effective length of the heap. The code is shown below:

[file]{heap_sort}-[class]{}-[func]{heap_sort}

Algorithm characteristics

  • Time complexity is \(O(n \log n)\), non-adaptive sort: The heap creation uses \(O(n)\) time. Extracting the largest element from the heap takes \(O(\log n)\) time, looping for \(n - 1\) rounds.
  • Space complexity is \(O(1)\), in-place sort: A few pointer variables use \(O(1)\) space. The element swapping and heapifying operations are performed on the original array.
  • Non-stable sort: The relative positions of equal elements may change during the swapping of the heap's top and bottom elements.
