Binary tree

A binary tree is a non-linear data structure that represents the hierarchical relationship between ancestors and descendants, embodying the divide-and-conquer logic of "splitting into two". Similar to a linked list, the basic unit of a binary tree is a node, each containing a value, a reference to the left child node, and a reference to the right child node.

class TreeNode:
    """Binary tree node"""
    def __init__(self, val: int):
        self.val: int = val                # Node value
        self.left: TreeNode | None = None  # Reference to left child node
        self.right: TreeNode | None = None # Reference to right child node

/* Binary tree node */
struct TreeNode {
    int val;          // Node value
    TreeNode *left;   // Pointer to left child node
    TreeNode *right;  // Pointer to right child node
    TreeNode(int x) : val(x), left(nullptr), right(nullptr) {}
};

/* Binary tree node */
class TreeNode {
    int val;         // Node value
    TreeNode left;   // Reference to left child node
    TreeNode right;  // Reference to right child node
    TreeNode(int x) { val = x; }
}

/* Binary tree node */
class TreeNode(int? x) {
    public int? val = x;    // Node value
    public TreeNode? left;  // Reference to left child node
    public TreeNode? right; // Reference to right child node
}

/* Binary tree node */
type TreeNode struct {
    Val   int
    Left  *TreeNode
    Right *TreeNode
}
/* 构造方法 */
func NewTreeNode(v int) *TreeNode {
    return &TreeNode{
        Left:  nil, // Pointer to left child node
        Right: nil, // Pointer to right child node
        Val:   v,   // Node value
    }
}

/* Binary tree node */
class TreeNode {
    var val: Int // Node value
    var left: TreeNode? // Reference to left child node
    var right: TreeNode? // Reference to right child node

    init(x: Int) {
        val = x
    }
}

/* Binary tree node */
class TreeNode {
    val; // Node value
    left; // Pointer to left child node
    right; // Pointer to right child node
    constructor(val, left, right) {
        this.val = val === undefined ? 0 : val;
        this.left = left === undefined ? null : left;
        this.right = right === undefined ? null : right;
    }
}

/* Binary tree node */
class TreeNode {
    val: number;
    left: TreeNode | null;
    right: TreeNode | null;

    constructor(val?: number, left?: TreeNode | null, right?: TreeNode | null) {
        this.val = val === undefined ? 0 : val; // Node value
        this.left = left === undefined ? null : left; // Reference to left child node
        this.right = right === undefined ? null : right; // Reference to right child node
    }
}

/* Binary tree node */
class TreeNode {
  int val;         // Node value
  TreeNode? left;  // Reference to left child node
  TreeNode? right; // Reference to right child node
  TreeNode(this.val, [this.left, this.right]);
}

use std::rc::Rc;
use std::cell::RefCell;

/* Binary tree node */
struct TreeNode {
    val: i32,                               // Node value
    left: Option<Rc<RefCell<TreeNode>>>,    // Reference to left child node
    right: Option<Rc<RefCell<TreeNode>>>,   // Reference to right child node
}

impl TreeNode {
    /* 构造方法 */
    fn new(val: i32) -> Rc<RefCell<Self>> {
        Rc::new(RefCell::new(Self {
            val,
            left: None,
            right: None
        }))
    }
}

/* Binary tree node */
typedef struct TreeNode {
    int val;                // Node value
    int height;             // 节点高度
    struct TreeNode *left;  // Pointer to left child node
    struct TreeNode *right; // Pointer to right child node
} TreeNode;

/* 构造函数 */
TreeNode *newTreeNode(int val) {
    TreeNode *node;

    node = (TreeNode *)malloc(sizeof(TreeNode));
    node->val = val;
    node->height = 0;
    node->left = NULL;
    node->right = NULL;
    return node;
}

/* Binary tree node */
class TreeNode(val _val: Int) {  // Node value
    val left: TreeNode? = null   // Reference to left child node
    val right: TreeNode? = null  // Reference to right child node
}

Each node has two references (pointers), pointing to the left-child node and right-child node, respectively. This node is called the parent node of these two child nodes. When given a node of a binary tree, we call the tree formed by this node's left child and all nodes under it the left subtree of this node. Similarly, the right subtree can be defined.

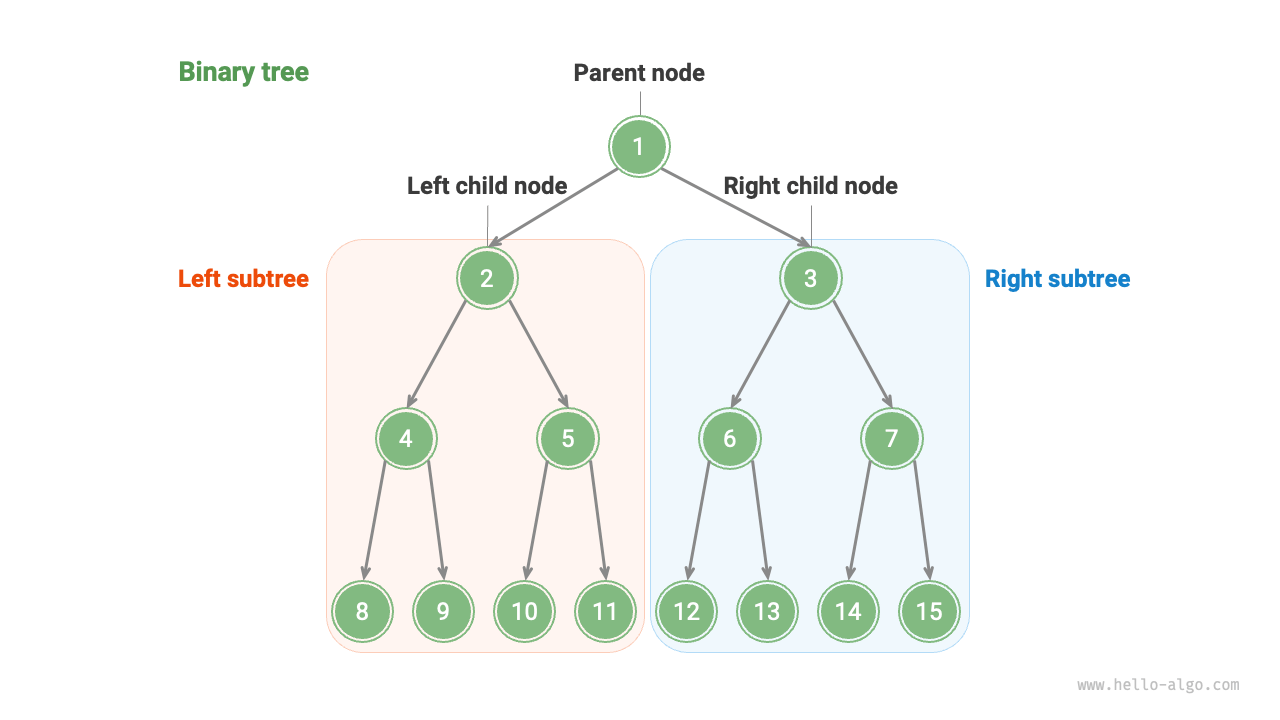

In a binary tree, except for leaf nodes, all other nodes contain child nodes and non-empty subtrees. As shown in the figure below, if "Node 2" is considered as the parent node, then its left and right child nodes are "Node 4" and "Node 5," respectively. The left subtree is "the tree formed by Node 4 and all nodes under it," and the right subtree is "the tree formed by Node 5 and all nodes under it."

Parent Node, child Node, subtree

Common terminology of binary trees

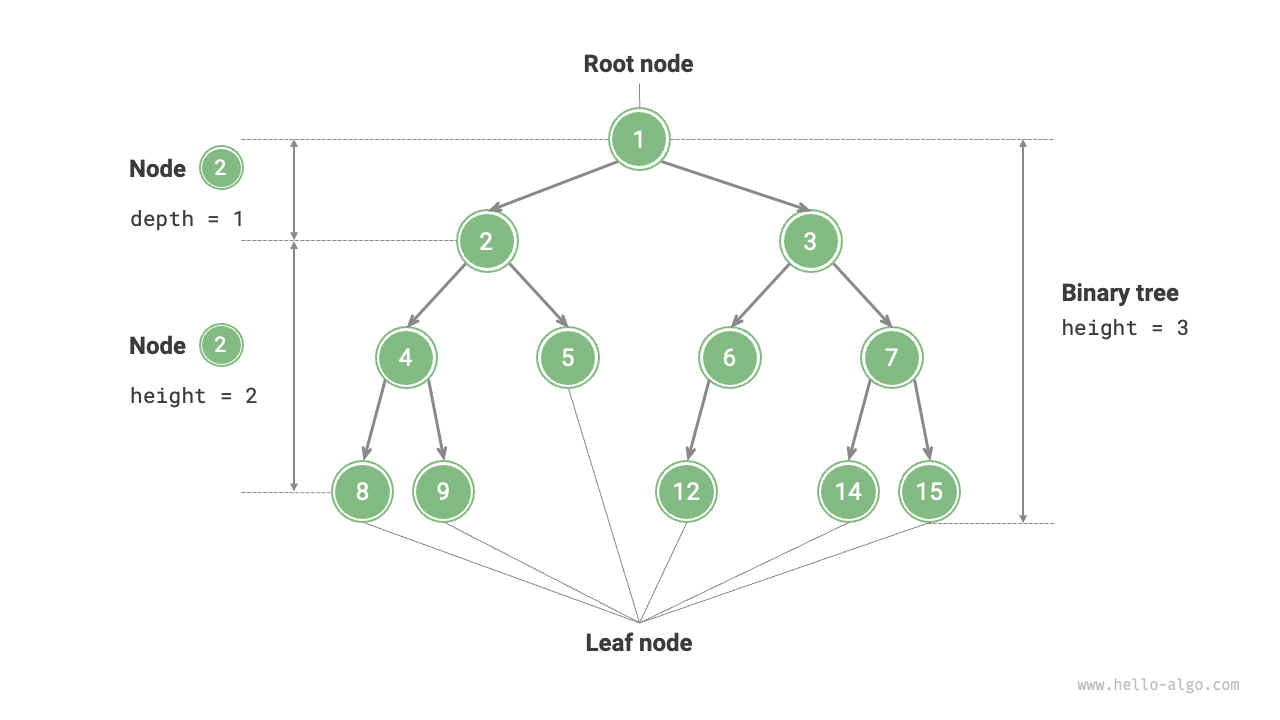

The commonly used terminology of binary trees is shown in the figure below.

  • Root node: The node at the top level of the binary tree, which has no parent node.
  • Leaf node: A node with no children, both of its pointers point to None.
  • Edge: The line segment connecting two nodes, i.e., node reference (pointer).
  • The level of a node: Incrementing from top to bottom, with the root node's level being 1.
  • The degree of a node: The number of children a node has. In a binary tree, the degree can be 0, 1, or 2.
  • The height of a binary tree: The number of edges passed from the root node to the farthest leaf node.
  • The depth of a node: The number of edges passed from the root node to the node.
  • The height of a node: The number of edges from the farthest leaf node to the node.

Common Terminology of Binary Trees

Tip

Please note that we typically define "height" and "depth" as "the number of edges traversed", but some problems or textbooks may define them as "the number of nodes traversed". In such cases, both height and depth need to be incremented by 1.

Basic operations of binary trees

Initializing a binary tree

Similar to a linked list, begin by initialize nodes, then construct references (pointers).

binary_tree.py
# Initializing a binary tree
# Initializing nodes
n1 = TreeNode(val=1)
n2 = TreeNode(val=2)
n3 = TreeNode(val=3)
n4 = TreeNode(val=4)
n5 = TreeNode(val=5)
# Linking references (pointers) between nodes
n1.left = n2
n1.right = n3
n2.left = n4
n2.right = n5
binary_tree.cpp
/* Initializing a binary tree */
// Initializing nodes
TreeNode* n1 = new TreeNode(1);
TreeNode* n2 = new TreeNode(2);
TreeNode* n3 = new TreeNode(3);
TreeNode* n4 = new TreeNode(4);
TreeNode* n5 = new TreeNode(5);
// Linking references (pointers) between nodes
n1->left = n2;
n1->right = n3;
n2->left = n4;
n2->right = n5;
binary_tree.java
// Initializing nodes
TreeNode n1 = new TreeNode(1);
TreeNode n2 = new TreeNode(2);
TreeNode n3 = new TreeNode(3);
TreeNode n4 = new TreeNode(4);
TreeNode n5 = new TreeNode(5);
// Linking references (pointers) between nodes
n1.left = n2;
n1.right = n3;
n2.left = n4;
n2.right = n5;
binary_tree.cs
/* Initializing a binary tree */
// Initializing nodes
TreeNode n1 = new(1);
TreeNode n2 = new(2);
TreeNode n3 = new(3);
TreeNode n4 = new(4);
TreeNode n5 = new(5);
// Linking references (pointers) between nodes
n1.left = n2;
n1.right = n3;
n2.left = n4;
n2.right = n5;
binary_tree.go
/* Initializing a binary tree */
// Initializing nodes
n1 := NewTreeNode(1)
n2 := NewTreeNode(2)
n3 := NewTreeNode(3)
n4 := NewTreeNode(4)
n5 := NewTreeNode(5)
// Linking references (pointers) between nodes
n1.Left = n2
n1.Right = n3
n2.Left = n4
n2.Right = n5
binary_tree.swift
// Initializing nodes
let n1 = TreeNode(x: 1)
let n2 = TreeNode(x: 2)
let n3 = TreeNode(x: 3)
let n4 = TreeNode(x: 4)
let n5 = TreeNode(x: 5)
// Linking references (pointers) between nodes
n1.left = n2
n1.right = n3
n2.left = n4
n2.right = n5
binary_tree.js
/* Initializing a binary tree */
// Initializing nodes
let n1 = new TreeNode(1),
    n2 = new TreeNode(2),
    n3 = new TreeNode(3),
    n4 = new TreeNode(4),
    n5 = new TreeNode(5);
// Linking references (pointers) between nodes
n1.left = n2;
n1.right = n3;
n2.left = n4;
n2.right = n5;
binary_tree.ts
/* Initializing a binary tree */
// Initializing nodes
let n1 = new TreeNode(1),
    n2 = new TreeNode(2),
    n3 = new TreeNode(3),
    n4 = new TreeNode(4),
    n5 = new TreeNode(5);
// Linking references (pointers) between nodes
n1.left = n2;
n1.right = n3;
n2.left = n4;
n2.right = n5;
binary_tree.dart
/* Initializing a binary tree */
// Initializing nodes
TreeNode n1 = new TreeNode(1);
TreeNode n2 = new TreeNode(2);
TreeNode n3 = new TreeNode(3);
TreeNode n4 = new TreeNode(4);
TreeNode n5 = new TreeNode(5);
// Linking references (pointers) between nodes
n1.left = n2;
n1.right = n3;
n2.left = n4;
n2.right = n5;
binary_tree.rs
// Initializing nodes
let n1 = TreeNode::new(1);
let n2 = TreeNode::new(2);
let n3 = TreeNode::new(3);
let n4 = TreeNode::new(4);
let n5 = TreeNode::new(5);
// Linking references (pointers) between nodes
n1.borrow_mut().left = Some(n2.clone());
n1.borrow_mut().right = Some(n3);
n2.borrow_mut().left = Some(n4);
n2.borrow_mut().right = Some(n5);
binary_tree.c
/* Initializing a binary tree */
// Initializing nodes
TreeNode *n1 = newTreeNode(1);
TreeNode *n2 = newTreeNode(2);
TreeNode *n3 = newTreeNode(3);
TreeNode *n4 = newTreeNode(4);
TreeNode *n5 = newTreeNode(5);
// Linking references (pointers) between nodes
n1->left = n2;
n1->right = n3;
n2->left = n4;
n2->right = n5;
binary_tree.kt
// Initializing nodes
val n1 = TreeNode(1)
val n2 = TreeNode(2)
val n3 = TreeNode(3)
val n4 = TreeNode(4)
val n5 = TreeNode(5)
// Linking references (pointers) between nodes
n1.left = n2
n1.right = n3
n2.left = n4
n2.right = n5
binary_tree.rb
binary_tree.zig
Code visualization

https://pythontutor.com/render.html#code=class%20TreeNode%3A%0A%20%20%20%20%22%22%22%E4%BA%8C%E5%8F%89%E6%A0%91%E8%8A%82%E7%82%B9%E7%B1%BB%22%22%22%0A%20%20%20%20def%20__init__%28self,%20val%3A%20int%29%3A%0A%20%20%20%20%20%20%20%20self.val%3A%20int%20%3D%20val%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%23%20%E8%8A%82%E7%82%B9%E5%80%BC%0A%20%20%20%20%20%20%20%20self.left%3A%20TreeNode%20%7C%20None%20%3D%20None%20%20%23%20%E5%B7%A6%E5%AD%90%E8%8A%82%E7%82%B9%E5%BC%95%E7%94%A8%0A%20%20%20%20%20%20%20%20self.right%3A%20TreeNode%20%7C%20None%20%3D%20None%20%23%20%E5%8F%B3%E5%AD%90%E8%8A%82%E7%82%B9%E5%BC%95%E7%94%A8%0A%0A%22%22%22Driver%20Code%22%22%22%0Aif%20__name__%20%3D%3D%20%22__main__%22%3A%0A%20%20%20%20%23%20%E5%88%9D%E5%A7%8B%E5%8C%96%E4%BA%8C%E5%8F%89%E6%A0%91%0A%20%20%20%20%23%20%E5%88%9D%E5%A7%8B%E5%8C%96%E8%8A%82%E7%82%B9%0A%20%20%20%20n1%20%3D%20TreeNode%28val%3D1%29%0A%20%20%20%20n2%20%3D%20TreeNode%28val%3D2%29%0A%20%20%20%20n3%20%3D%20TreeNode%28val%3D3%29%0A%20%20%20%20n4%20%3D%20TreeNode%28val%3D4%29%0A%20%20%20%20n5%20%3D%20TreeNode%28val%3D5%29%0A%20%20%20%20%23%20%E6%9E%84%E5%BB%BA%E8%8A%82%E7%82%B9%E4%B9%8B%E9%97%B4%E7%9A%84%E5%BC%95%E7%94%A8%EF%BC%88%E6%8C%87%E9%92%88%EF%BC%89%0A%20%20%20%20n1.left%20%3D%20n2%0A%20%20%20%20n1.right%20%3D%20n3%0A%20%20%20%20n2.left%20%3D%20n4%0A%20%20%20%20n2.right%20%3D%20n5&cumulative=false&curInstr=3&heapPrimitives=nevernest&mode=display&origin=opt-frontend.js&py=311&rawInputLstJSON=%5B%5D&textReferences=false

Inserting and removing nodes

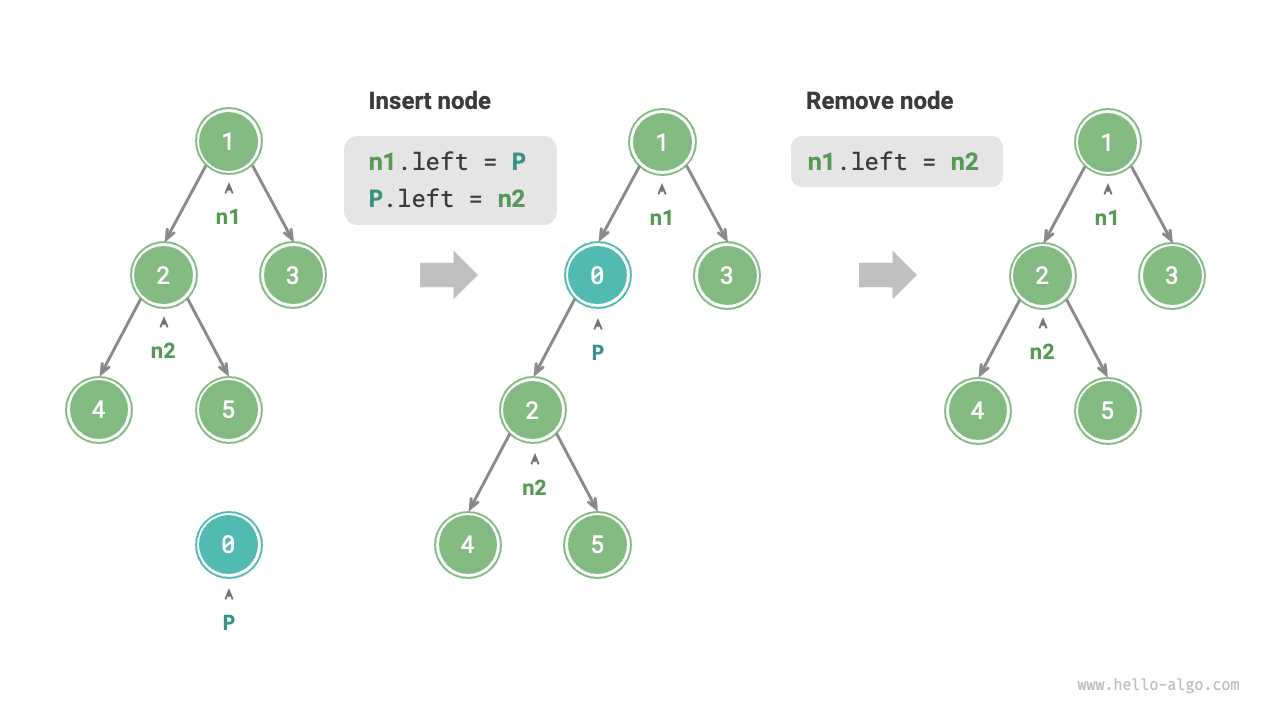

Similar to a linked list, inserting and removing nodes in a binary tree can be achieved by modifying pointers. The figure below provides an example.

Inserting and removing nodes in a binary tree

binary_tree.py
# Inserting and removing nodes
p = TreeNode(0)
# Inserting node P between n1 -> n2
n1.left = p
p.left = n2
# Removing node P
n1.left = n2
binary_tree.cpp
/* Inserting and removing nodes */
TreeNode* P = new TreeNode(0);
// Inserting node P between n1 and n2
n1->left = P;
P->left = n2;
// Removing node P
n1->left = n2;
binary_tree.java
TreeNode P = new TreeNode(0);
// Inserting node P between n1 and n2
n1.left = P;
P.left = n2;
// Removing node P
n1.left = n2;
binary_tree.cs
/* Inserting and removing nodes */
TreeNode P = new(0);
// Inserting node P between n1 and n2
n1.left = P;
P.left = n2;
// Removing node P
n1.left = n2;
binary_tree.go
/* Inserting and removing nodes */
// Inserting node P between n1 and n2
p := NewTreeNode(0)
n1.Left = p
p.Left = n2
// Removing node P
n1.Left = n2
binary_tree.swift
let P = TreeNode(x: 0)
// Inserting node P between n1 and n2
n1.left = P
P.left = n2
// Removing node P
n1.left = n2
binary_tree.js
/* Inserting and removing nodes */
let P = new TreeNode(0);
// Inserting node P between n1 and n2
n1.left = P;
P.left = n2;
// Removing node P
n1.left = n2;
binary_tree.ts
/* Inserting and removing nodes */
const P = new TreeNode(0);
// Inserting node P between n1 and n2
n1.left = P;
P.left = n2;
// Removing node P
n1.left = n2;
binary_tree.dart
/* Inserting and removing nodes */
TreeNode P = new TreeNode(0);
// Inserting node P between n1 and n2
n1.left = P;
P.left = n2;
// Removing node P
n1.left = n2;
binary_tree.rs
let p = TreeNode::new(0);
// Inserting node P between n1 and n2
n1.borrow_mut().left = Some(p.clone());
p.borrow_mut().left = Some(n2.clone());
// Removing node P
n1.borrow_mut().left = Some(n2);
binary_tree.c
/* Inserting and removing nodes */
TreeNode *P = newTreeNode(0);
// Inserting node P between n1 and n2
n1->left = P;
P->left = n2;
// Removing node P
n1->left = n2;
binary_tree.kt
val P = TreeNode(0)
// Inserting node P between n1 and n2
n1.left = P
P.left = n2
// Removing node P
n1.left = n2
binary_tree.rb
binary_tree.zig
Code visualization

https://pythontutor.com/render.html#code=class%20TreeNode%3A%0A%20%20%20%20%22%22%22%E4%BA%8C%E5%8F%89%E6%A0%91%E8%8A%82%E7%82%B9%E7%B1%BB%22%22%22%0A%20%20%20%20def%20__init__%28self,%20val%3A%20int%29%3A%0A%20%20%20%20%20%20%20%20self.val%3A%20int%20%3D%20val%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%23%20%E8%8A%82%E7%82%B9%E5%80%BC%0A%20%20%20%20%20%20%20%20self.left%3A%20TreeNode%20%7C%20None%20%3D%20None%20%20%23%20%E5%B7%A6%E5%AD%90%E8%8A%82%E7%82%B9%E5%BC%95%E7%94%A8%0A%20%20%20%20%20%20%20%20self.right%3A%20TreeNode%20%7C%20None%20%3D%20None%20%23%20%E5%8F%B3%E5%AD%90%E8%8A%82%E7%82%B9%E5%BC%95%E7%94%A8%0A%0A%22%22%22Driver%20Code%22%22%22%0Aif%20__name__%20%3D%3D%20%22__main__%22%3A%0A%20%20%20%20%23%20%E5%88%9D%E5%A7%8B%E5%8C%96%E4%BA%8C%E5%8F%89%E6%A0%91%0A%20%20%20%20%23%20%E5%88%9D%E5%A7%8B%E5%8C%96%E8%8A%82%E7%82%B9%0A%20%20%20%20n1%20%3D%20TreeNode%28val%3D1%29%0A%20%20%20%20n2%20%3D%20TreeNode%28val%3D2%29%0A%20%20%20%20n3%20%3D%20TreeNode%28val%3D3%29%0A%20%20%20%20n4%20%3D%20TreeNode%28val%3D4%29%0A%20%20%20%20n5%20%3D%20TreeNode%28val%3D5%29%0A%20%20%20%20%23%20%E6%9E%84%E5%BB%BA%E8%8A%82%E7%82%B9%E4%B9%8B%E9%97%B4%E7%9A%84%E5%BC%95%E7%94%A8%EF%BC%88%E6%8C%87%E9%92%88%EF%BC%89%0A%20%20%20%20n1.left%20%3D%20n2%0A%20%20%20%20n1.right%20%3D%20n3%0A%20%20%20%20n2.left%20%3D%20n4%0A%20%20%20%20n2.right%20%3D%20n5%0A%0A%20%20%20%20%23%20%E6%8F%92%E5%85%A5%E4%B8%8E%E5%88%A0%E9%99%A4%E8%8A%82%E7%82%B9%0A%20%20%20%20p%20%3D%20TreeNode%280%29%0A%20%20%20%20%23%20%E5%9C%A8%20n1%20-%3E%20n2%20%E4%B8%AD%E9%97%B4%E6%8F%92%E5%85%A5%E8%8A%82%E7%82%B9%20P%0A%20%20%20%20n1.left%20%3D%20p%0A%20%20%20%20p.left%20%3D%20n2%0A%20%20%20%20%23%20%E5%88%A0%E9%99%A4%E8%8A%82%E7%82%B9%20P%0A%20%20%20%20n1.left%20%3D%20n2&cumulative=false&curInstr=37&heapPrimitives=nevernest&mode=display&origin=opt-frontend.js&py=311&rawInputLstJSON=%5B%5D&textReferences=false

Tip

It's important to note that inserting nodes may change the original logical structure of the binary tree, while removing nodes typically involves removing the node and all its subtrees. Therefore, in a binary tree, insertion and removal are usually performed through a coordinated set of operations to achieve meaningful outcomes.

Common types of binary trees

Perfect binary tree

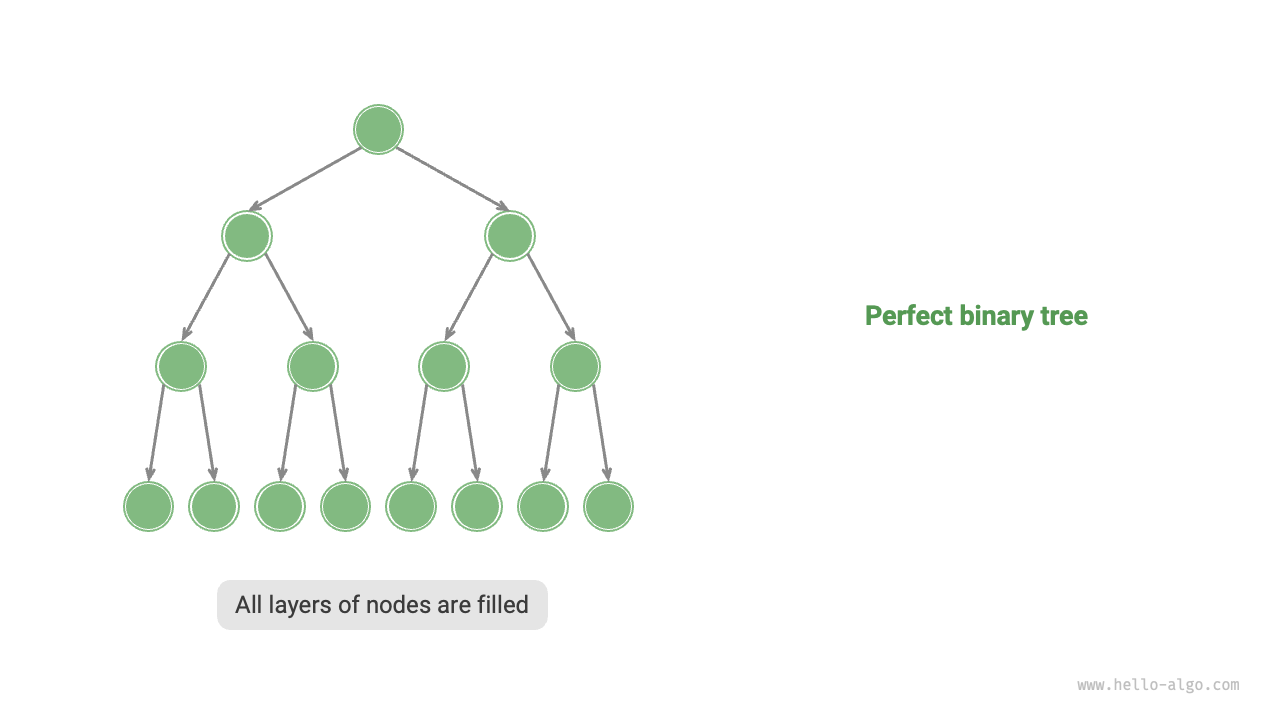

As shown in the figure below, in a perfect binary tree, all levels of nodes are fully filled. In a perfect binary tree, the degree of leaf nodes is \(0\), while the degree of all other nodes is \(2\); if the tree's height is \(h\), then the total number of nodes is \(2^{h+1} - 1\), showing a standard exponential relationship, reflecting the common phenomenon of cell division in nature.

Tip

Please note that in the Chinese community, a perfect binary tree is often referred to as a full binary tree.

Perfect binary tree

Complete binary tree

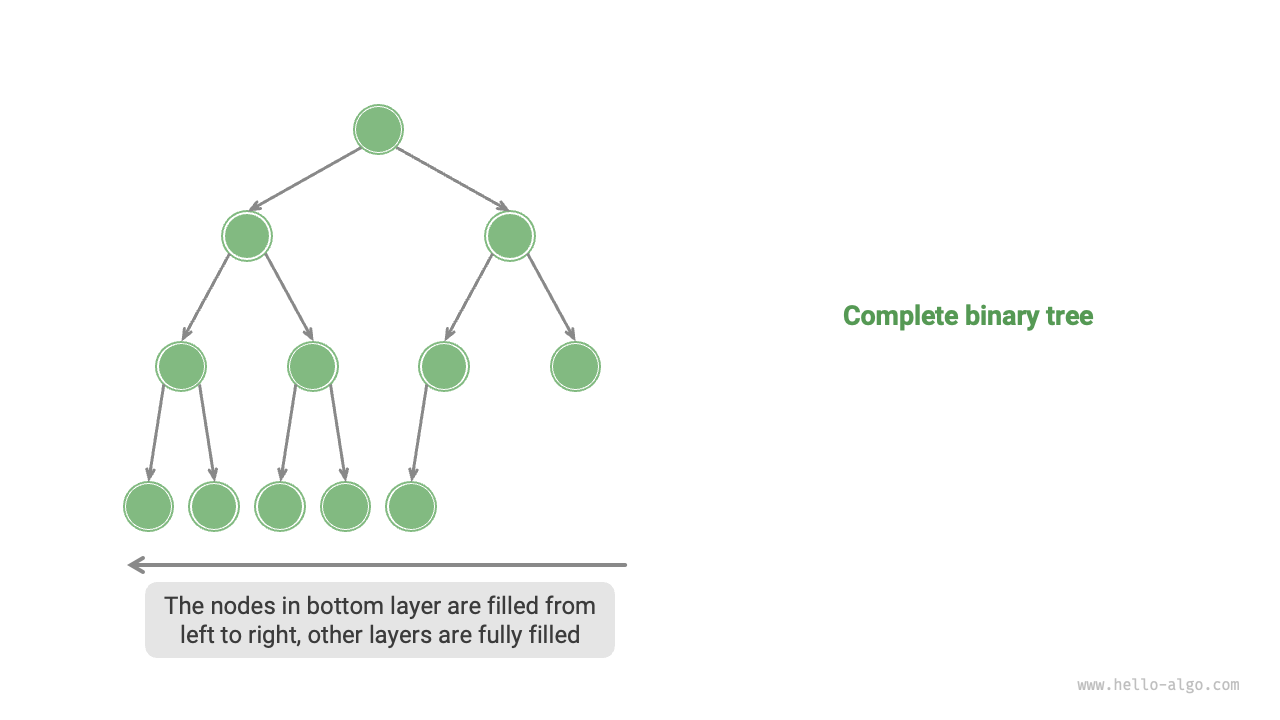

As shown in the figure below, a complete binary tree has only the bottom level nodes not fully filled, and the bottom level nodes are filled as far left as possible.

Complete binary tree

Full binary tree

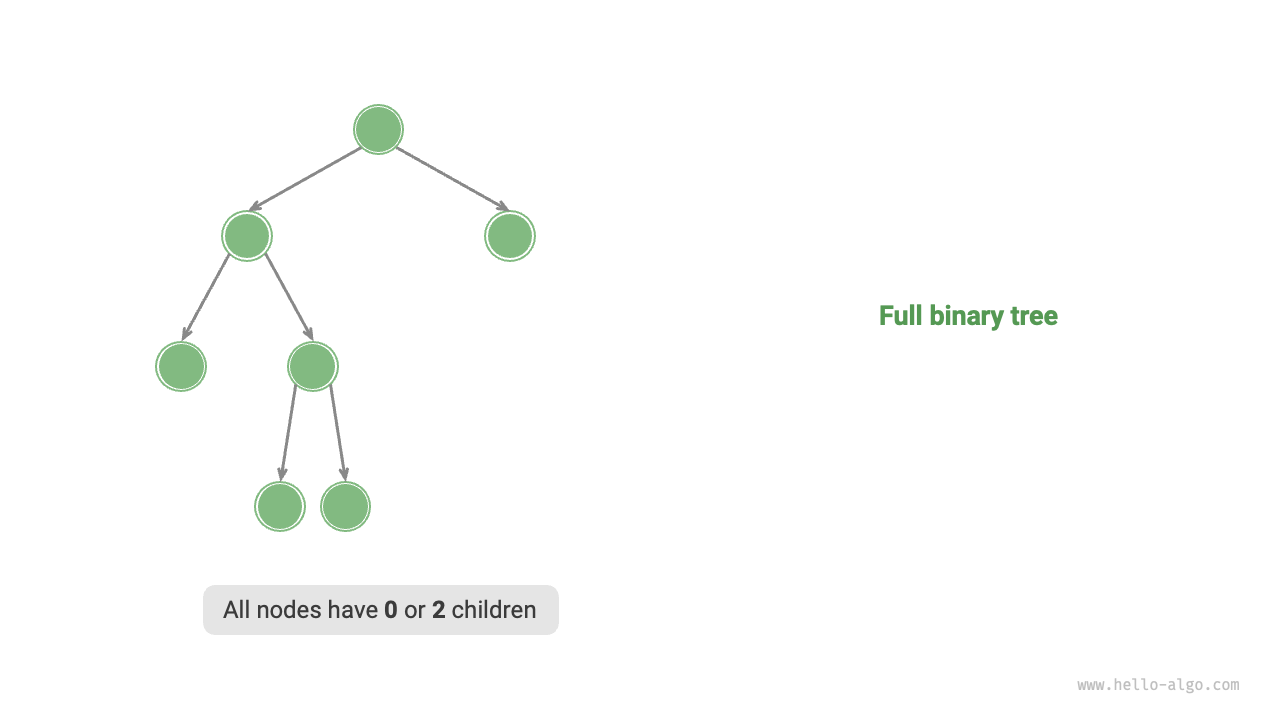

As shown in the figure below, a full binary tree has all nodes except leaf nodes having two children.

Full binary tree

Balanced binary tree

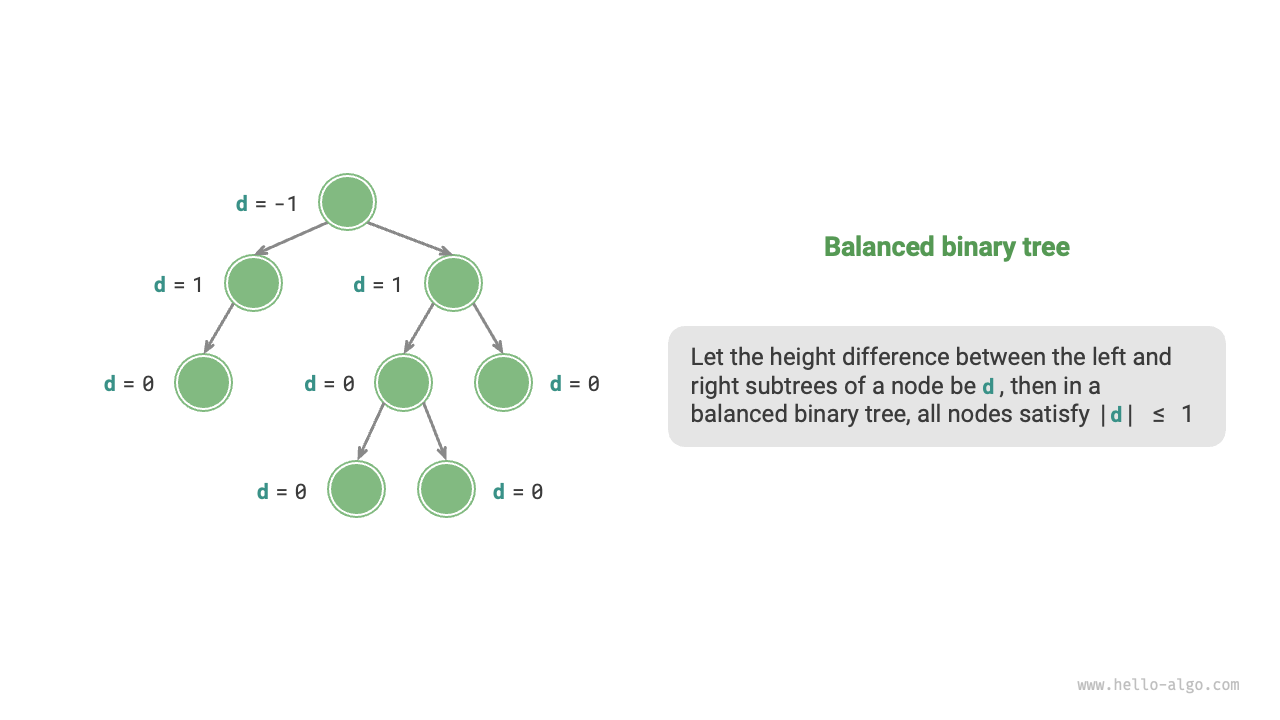

As shown in the figure below, in a balanced binary tree, the absolute difference in height between the left and right subtrees of any node does not exceed 1.

Balanced binary tree

Degeneration of binary trees

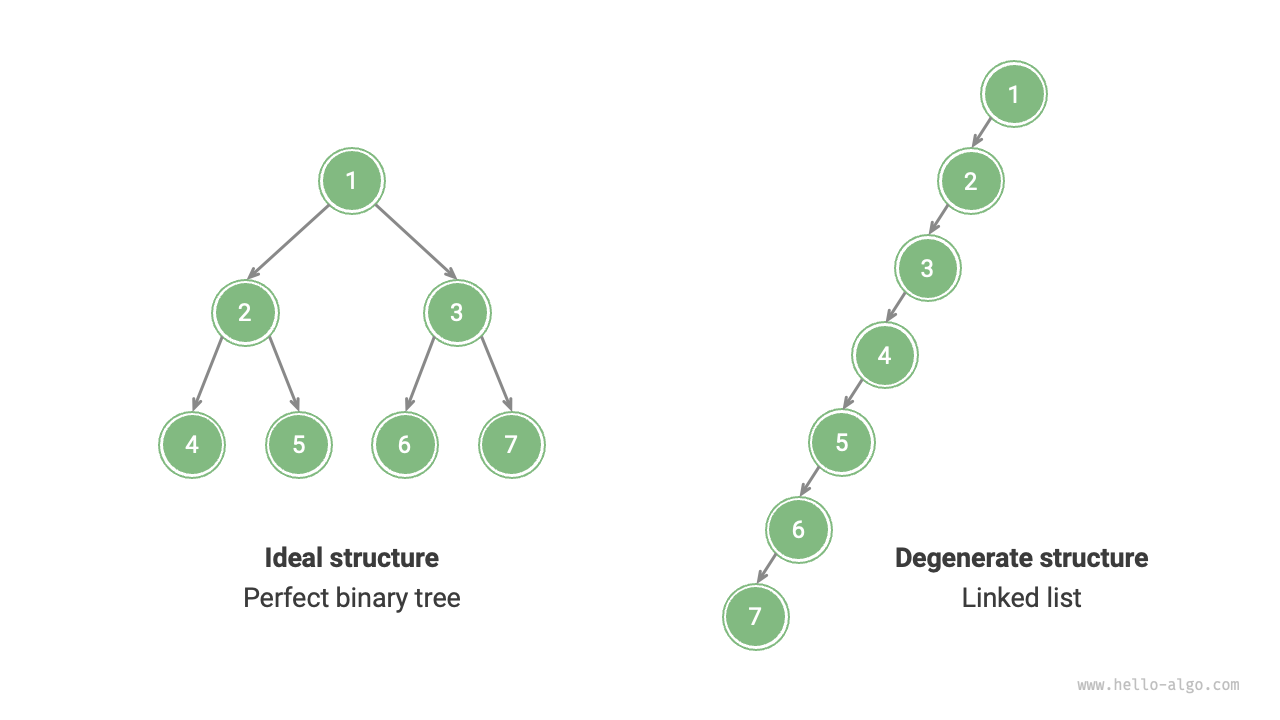

The figure below shows the ideal and degenerate structures of binary trees. A binary tree becomes a "perfect binary tree" when every level is filled; while it degenerates into a "linked list" when all nodes are biased toward one side.

  • The perfect binary tree is the ideal situation, fully leveraging the "divide and conquer" advantage of binary trees.
  • A linked list is another extreme, where operations become linear, degrading the time complexity to \(O(n)\).

The Best and Worst Structures of Binary Trees

As shown in the table below, in the best and worst structures, the number of leaf nodes, total number of nodes, and height of the binary tree reach their maximum or minimum values.

Table   The Best and Worst Structures of Binary Trees

Perfect binary tree Linked list
Number of nodes at level \(i\) \(2^{i-1}\) \(1\)
Number of leaf nodes in a tree with height \(h\) \(2^h\) \(1\)
Total number of nodes in a tree with height \(h\) \(2^{h+1} - 1\) \(h + 1\)
Height of a tree with \(n\) total nodes \(\log_2 (n+1) - 1\) \(n - 1\)
